Quad Core Embedded Linux Motherboard , Processor STB Tablet Industrial Linux Board

Quad Core Embedded Linux Motherboard , Processor STB Tablet Industrial Linux Board
Quad Core Embedded Linux Motherboard , Processor STB Tablet Industrial Linux Board Quad Core Embedded Linux Motherboard , Processor STB Tablet Industrial Linux Board

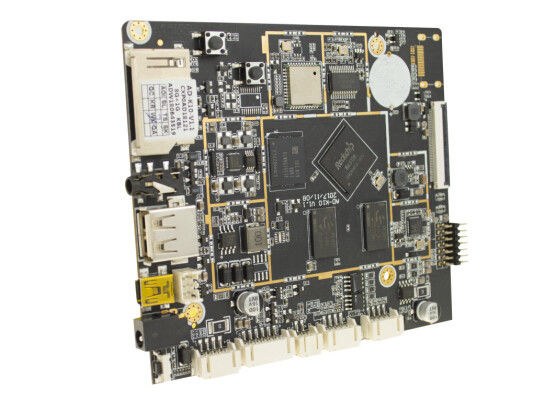

Large Image :  Quad Core Embedded Linux Motherboard , Processor STB Tablet Industrial Linux Board

Product Details:
Place of Origin: China
Brand Name: ADW
Model Number: AD-K10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD40~USD50/pc
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 1~3days if have stock, 30 days if out of stock
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs per month

Quad Core Embedded Linux Motherboard , Processor STB Tablet Industrial Linux Board

Description
CPU: RK3128 Quad Core MiPi Interface: Support Screen 1280*720P
Touch Screen: I2C Interface Internet: RJ45 Interface, Support 10M/100M Ethernet
OS: Android 6.0 HDMI: HDMI Out
RAM: 1GB,2GB Optional EMMC: 8GB,16GB,32GB Optional
High Light:

industrial linux board

,

quad core linux board

,

rockchip 3128 linux embedded board

Rockchip 3128 Embedded Linux Board Quad Core Processor for STB and Tablet



RK3128 Android all in one board, using Rockchip RK3128 quad-core chip program to support Google Android6.0 system. Support the mainstream audio and video formats and image decoding. Can support the highest resolution 1280 * 720, using a single MIPI interface LCD panel. With HDMI interface, support 1080P video playback. Rich interface, make the product more common, is widely used in advertising, one machine, security, industrial control and other intelligent control. Because of its hardware platform, Android intelligent features, in the need for human-computer interaction, network equipment, interactive, intelligent terminal platform can be used.



Characteristic:

  •  High performance. RK3128 chip with quad-core Cortex-A7, up to 1.2GHz frequency.
  •  High stability. RK3128 Andrews one board, in hardware, software, increase their own unique technology to ensure product stability, you can make the final product to 7 * 24 hours unattended.



  •  High level of integration RK3128 Andrews integrated board integrated Ethernet, wifi, amplifier, SD card, and so on, greatly simplifying the machine design. Slim-style motherboard design allows the machine design more beautiful.



  •  High scalability 3 USB ports, can expand more external devices.





Product  Picture



Quad Core Embedded Linux Motherboard , Processor STB Tablet Industrial Linux Board 0Quad Core Embedded Linux Motherboard , Processor STB Tablet Industrial Linux Board 1

  •  Basic hardware specifications



CPU Rockchip RK3128 quad core Cortex-A7 quad core GPU Mali-400MP2
Frequency 1.2 GHz
RAM DDR3 1G/2G Optional
Built-in storage capacity EMMC 8GB/16GOptional(label 8GB)
Display interface MIPI-DSI interpace. Support the maximum resolution1280*720
Touch screen Provide I2C interface (can support multi-point resistance touch, multi-point capacitance touch)
Internet With RJ45 interface,support10/100M Ethernet
With wifi module, support for Wi-Fi 802.11b / g / n protocol
Image rotation Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support for gravity sensing
Real Time Clock Built-in real-time clock battery
Interface equipment Support DVP interface camera
3*USB HOST,1*USB OTG
SD card,Maximum support 32GB
D class Built-in speaker,2W* 2 8R
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format

Video



Multi-format 1080P 60fps video decoding (H.265, H.264, VC-1, MPEG-1/2/4, VP8) .YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play
Picture Support for JPG, BMP, PNG and other image formats Browse and support rotation / slide show / image zoom function
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V 2A





  •  Basic software specifications
Operating system Google Android 6.0
Basic software features Web browsing, web chat, e-mail, e-books, resource managers
Sound mode Clock, alarm clock, calculator, recording
Voice support multiple languages
Record Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Computer
Note
Weather + clock
Record
Document processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
schedule calendar
Input Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System Management APK Installer
Original Android system, open root privileges, product development can be customized
Real-time remote monitoring, system crash self-recovery, 7 * 24 hours unattended
System setting
Google Maps
Global time



RJ45 Small board optional

Front

Quad Core Embedded Linux Motherboard , Processor STB Tablet Industrial Linux Board 2

back

Quad Core Embedded Linux Motherboard , Processor STB Tablet Industrial Linux Board 3

side

Quad Core Embedded Linux Motherboard , Processor STB Tablet Industrial Linux Board 4
