Product Details:
Place of Origin: China
Brand Name: ADW
Model Number: AD-Z12
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD50~USD70/pc
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 1~3days if have stock, 30 days if out of stock
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs per month

Display Interface Open Source ARM Board Home Automation POS Terminals 3G Data Interface

Description
CPU: Rockchip3188 Quad Core Frequency: 1.6GHz
EDP Screen Interface: Support Resolution 1920*1080P Touch Screen: I2C Interface
Internet: RJ45 Interface, Support 10M/100M Ethernet OS: Android 4.4 Or Above
USB: USB2.0 HDMI: HDMI Out
RAM: 1GB,2GB Optional EMMC: 8GB,16GB,32GB Optional
High Light:

arm computer board

,

custom arm board

Embedded ARM Board with Display interface for Home Automation POS Terminals



Overview:

RK3188 Android all in one board, using Rockchip RK3188 quad-core chip program, support Google Android4.4 system. Support the mainstream audio and video formats and picture decoding. Dual 8-bit LVDS interface 1920 * 1080, can drive 7 "to 82" display. Exclusive support for 3G module Internet access, rich interface, so that products become more common, widely used in advertising machines, one machine, security, industrial control, and so on intelligent control. Because of its hardware platform, Android intelligent features, in the need for human-computer interaction, network equipment, interactive, intelligent terminal platform can be used.



Characteristic:

  •  High performance. RK3188 chip using quad-core A9 program, it’s currently on the market one of the most powerful quad-core chip. Using the chip RK3188 motherboard program, compared to the common market of single-core, dual-core, quad-core program, a qualitative leap in performance, to play a variety of formats HD video, can handle complex interactive operation.



  •  High stability. RK3188 Andrews board, in the hardware, software, to increase their own unique technology to ensure product stability, can make the final product to 7 * 24 hours unattended.



  •  Highly integrated. RK3188 Andrews integrated board integrated Ethernet, wifi, Bluetooth, amplifier, SD card, 3G data interface, backlight power supply and so on, greatly simplifying the machine design. Ultra-thin motherboard design, make the machine design more beautiful.



  •  High scalability. Four USB ports, three serial ports, can expand more peripherals.



Product Specifications

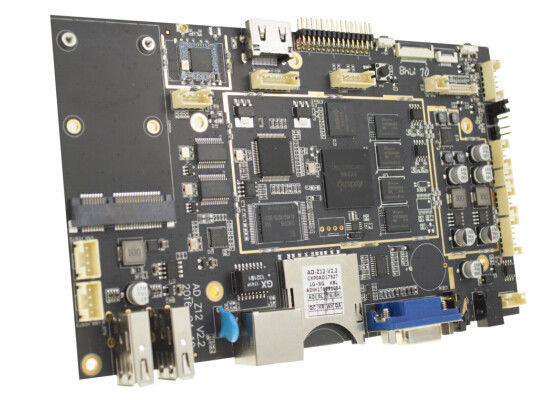

Product picture

Display Interface Open Source ARM Board Home Automation POS Terminals 3G Data Interface 0Display Interface Open Source ARM Board Home Automation POS Terminals 3G Data Interface 1



Basic hardware specifications:

CPU RockChip RK3188 quad core Cortex-A9 quad core GPU Mail-400 @ 533MHz
Frequency 1.6 GHz
RAM DDR3 1G/2G Optional
Built-in storage capacity EMMC FLASH 8GB/16G/32G Optional(label 8GB,usable NAND)
DIF LVDS interface(Single, 6-way, 8-way dual).Support maximum resolution 1920x1080, support 7 "-82" display.
Mainboard backlight Support 3.3V/5V/12V Optional
Touch screen Provide I2C interface (can support multi-point resistance touch, multi-point capacitive touch).Support USB multi-point infrared touch, multi-point sound saw touch, multi-point optical touch.
Network Have RJ45 interface,support Ethernet.
Have wifi&BT module,support Wi-Fi 802.11b/g/nprotocol.Support hold BT4.0
Have 3G data function,support WCDMA,EVDO,CDMA,GSM),2G/3GFull spectrum support 850/900/1800/1900MHz/2100MHz
Image rotation Support 0 degree,90 degree,180 degree,270 degrees manual / automatic rotation, support gravity sensing function.
Real Time Clock Built-in real-time clock powered battery
System watchdog Support software, hardware watchdog
Interface device Support DVP interface camera, the maximum support 500W pixels
Support USB camera, the maximum support 800W pixels
3 USB HOST,1 USB OTG
3 groups of serial ports. Support external serial device module (3G module, NFC module, printer, card reader, etc.)
4 IO detection port
SD card, maximum support 32GB
D class Large built-in speakers,3W*2 8R
Support for microphones
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
Video Support H.264,VP8,RV,WMV,AVS,H.263,MPEG4 video formats such as 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play
Picture Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom
Power Adapter Input AC100-240V.50-60HZ, output:DC12V 3A


Basic software specifications:

Operating system Google Android 4.4
Basic software functions Web browsing, web chat, e-mail, e-books, and resource managers
Sound mode Clock, alarm clock, calculator, recording
Language support Multiple languages
Recording Support MP3,WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
Document processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input method Standard Andriod keyboard,Optional third party input method (Chinese, Korean, Japanese, etc.)
Network Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System Management APK Installer
The original eco-Android system, open root privileges, can be customized product development.
Real-time remote monitoring, system crash since recovery, 7 * 24 hours unattended
System setting
Google Maps
Global time
Support OTA remote upgrade
