CPU RK3188 Embedded Linux Board LVDS Interface Input AC100-240V 50-60HZ

CPU RK3188 Embedded Linux Board LVDS Interface Input AC100-240V 50-60HZ
CPU RK3188 Embedded Linux Board LVDS Interface Input AC100-240V 50-60HZ CPU RK3188 Embedded Linux Board LVDS Interface Input AC100-240V 50-60HZ

Large Image :  CPU RK3188 Embedded Linux Board LVDS Interface Input AC100-240V 50-60HZ

Product Details:
Place of Origin: China
Brand Name: ADW
Model Number: AD-Z05
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD40~USD50/pc
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 1~3days if have stock, 30 days if out of stock
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs per month

CPU RK3188 Embedded Linux Board LVDS Interface Input AC100-240V 50-60HZ

Description
CPU: Rockchip3188 Quad Core Cortex A9 GPU: Mali- 400MP2
EDP Screen Interface: Support Resolution 1920*1080P Touch Screen: I2C Interface
Internet: RJ45 Interface, Support 10M/100M Ethernet OS: Android 4.4 Or Above
USB: USD2.0 RAM: 1GB
EMMC: 8GB
Highlight:

tiny linux board

,

industrial linux board

,

RK3188 Embedded Linux Board

Embedded Linux Board With CPU RK3188 1G DDR 8G EMMC and LVDS Interface



Overview:

RK3188 Android all in one board, using Rockchip RK3188 quad-core chip program, support Google Android 4.4 system. Support the mainstream audio and video formats and picture decoding. Dual 8-bit LVDS interface 1920 * 1080, can drive 7 "to 82" display.  1080P, support 1080P video playback. Rich interface, so that products become more common, widely used in advertising machines, one machine, security, industrial control, and so the field of intelligent control. Because of its hardware platform, Android intelligent features, in the need for  interaction, network equipment, interactive, intelligent terminal platform can be used.



Characteristic:

  •  High performance. RK3188 chip using quad-core A9 program, it’s currently on the market one of the most powerful quad-core chip. Using the chip RK3188 motherboard program, compared to the common market of single-core, dual-core, quad-core program, a qualitative leap in performance, to play a variety of formats HD video, can handle complex interactive operation.



  •  High stability. RK3188 Andrews board, in the hardware, software, to increase their own unique technology to ensure product stability, can make the final product to 7 * 24 hours unattended.



  •  Highly integrated. RK3188 Andrews integrated board integrated Ethernet, wifi, Bluetooth, amplifier, SD card, backlight power supply and so on, greatly simplifying the machine design. Ultra-thin motherboard design, make the machine design more beautiful.



  •  High scalability. 3 USB ports (need to connect RJ45 small board), a serial port, can expand more peripherals.




Chapter 2 Product Specifications



Product picture

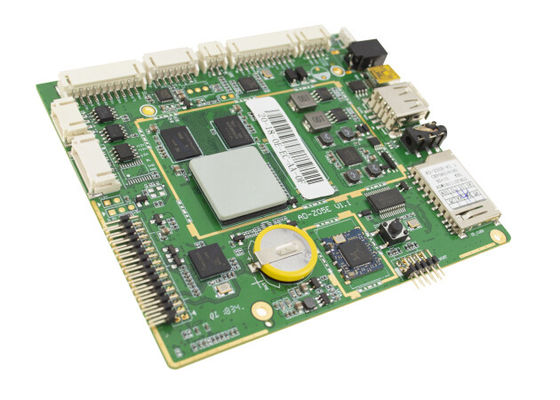

CPU RK3188 Embedded Linux Board LVDS Interface Input AC100-240V 50-60HZ 0CPU RK3188 Embedded Linux Board LVDS Interface Input AC100-240V 50-60HZ 1



Basic hardware specifications:

CPU RockChipRK3188 quad core Cortex-A9 quad core GPU Mail-400 @ 533MHz
Frequency 1.6 GHz
RAM DDR3 1G/2G Optional
Built-in storage capacity NAND FLASH 8GB/16G/32GOptional(label 8GB)
DIF LVDS interface(Single, 6-way, 8-way dual).Support maximum resolution 1920x1080, support 7 "-82" display.
Onboard backlight Support 3.3V/5V/12V Optional
Touch screen Provide I2C interface (can support multi-point resistance touch, multi-point capacitive touch).Support USB multi-point infrared touch, multi-point sound saw touch, multi-point optical touch.
Network Have RJ45 interface,support Ethernet.
Have wifi&BT module,support Wi-Fi 802.11b/g/nprotocol.Support BT3.0/BT4.0
With wifi & BT module, support Wi-Fi 802.11b / g / n protocol. Support BT3.0 / BT4.0
Image rotation Support 0 degree,90 degree,180 degree,270 degrees manual / automatic rotation, support gravity sensing function.
Real Time Clock Built-in real-time clock powered battery
Interface device Support DVP interface camera, the maximum support 500W pixels
Support USB camera
3 USB HOST (1 motherboard, 2 small board), 1 USB OTG
1 group serial port. Support external serial device module (3G module, NFC module, printer, card reader, etc.)
1 group of I2C ports
SD card, maximum support 32GB
D class large built-in speaker, 8 oh / 3W
Support for microphones
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
Video Support H.264,VP8,RV,WMV,AVS,H.263,MPEG4 video formats such as 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash 10.1 play
Picture Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom
Power Adapter Input AC100-240V.50-60HZ, output:DC12V 3A




Basic software specifications:

Operating system Google Android 4.4
Basic software functions Web browsing, web chat, e-mail, e-books, and resource managers
Sound mode Clock, alarm clock, calculator, recording
Language support Multiple languages
Recording Support MP3,WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
Document processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input method Standard Andriod keyboard,Optional third party input method (Chinese, Korean, Japanese, etc.)
Network Browser -ChromeLite
GOOGLE Market
Email
Gmail
Google talk
System Management APK Installer
The original eco-Android system, open root privileges, can be customized product development.
Real-time remote monitoring, system crash since recovery, 7 * 24 hours unattended
System setting
Google Maps
Global time
Support OTA remote upgrade




Appendix

RJ45 Small board specifications



Interface definition

  •  RJ45 interface
No. Definition Attributes Description
1 TXP output Signal sent positive
2 TXN output Signal sending negative
3 AGND output Analog ground
4 RXP output Signal receiving positive
5 RXN Ground line Signal receiving negative
6 AGND Ground line Analog ground
7 VCCA power supply powered by 3.3V
8 NC NC NC
9 NC NC NC
10 AGND Ground line Analog ground



  •  USB Expansion interface
No. Definition Attributes Description
1 HOST 5V output 5V Voltage output
2 DM4 output data
3 DP4 input data
4 GND Ground line Ground line
5 GND Ground line Ground line
6 HOST 5V output 5V Voltage output
7 DM3 output data
8 DP3 input data
9 GND Ground line Ground line
10 GND Ground line Ground line





RJ45 Small board

Front

CPU RK3188 Embedded Linux Board LVDS Interface Input AC100-240V 50-60HZ 2

back

CPU RK3188 Embedded Linux Board LVDS Interface Input AC100-240V 50-60HZ 3

side

CPU RK3188 Embedded Linux Board LVDS Interface Input AC100-240V 50-60HZ 4



SUNCHIP mainly manufactures:

1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,

RK3328, RKPX30, RK3188, RK3128 etc.

2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.

3, 【8K】Android Player Box for Industrial-Control Application: RK3588.

4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.

5, SKD Kit: Android board + LCD panel with touch or not:

7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.

6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.

7, Embedded touch desk: such as 32inch.

8, Face recognition temperature detection terminal machine: such as 8inch.

[You can also tell us your detailed requirements, so that we advise you a matched solution]
