Product Details:
|
| Material: | Metal | DDR: | 2GB /4GB Optional |
|---|---|---|---|
| Audio Format: | MP3, WAV, WMA, AAC, OGG, Etc. | CPU: | RK3288 |
| Color: | Black | Operation System: | Android |
| Accessories: | Power Adpater, AC Cable, Antenna | GPS Support: | Yes, Optional |
| High Light: | 2GB DDR HD Media Player,16GB EMMC HD Media Player,Metal Android Media Player Box |
||

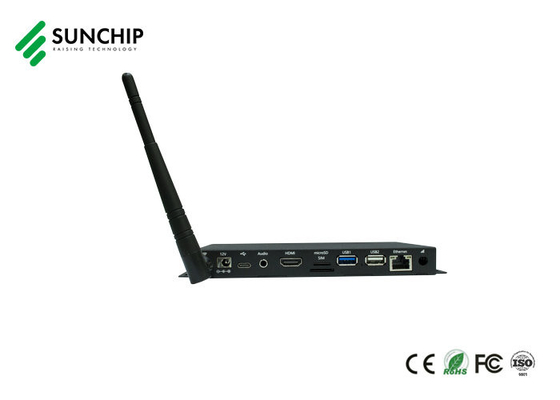

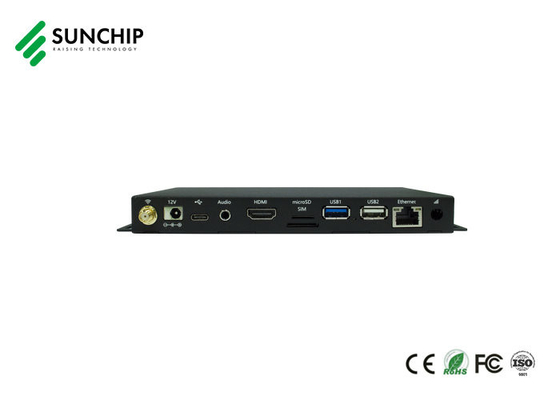

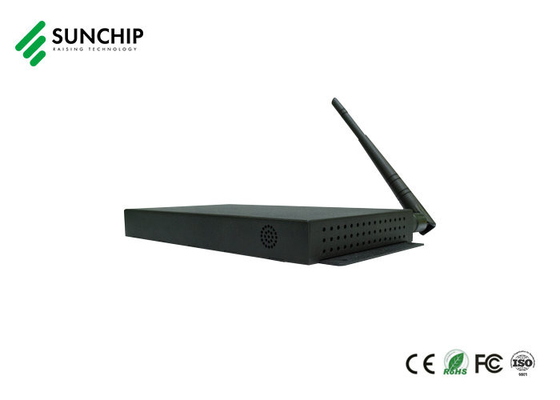

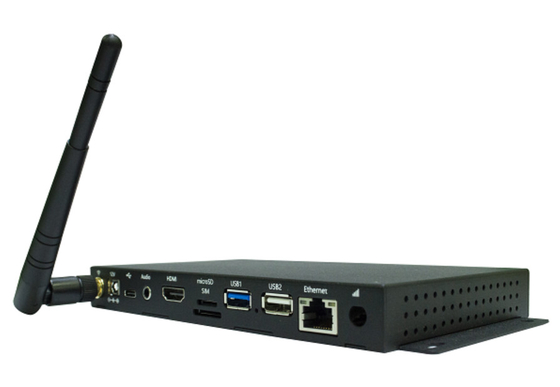

This Media Player AD-0140 is made of high-grade metal material. It features an EMMC of 16GB/32GB/64GB, optional, and supports both WIFI and BT connections. It comes with Power Adapter, AC Cable, and Antenna accessories. This android box and signage box with rk3288 processor is designed for media player applications.
Easy Management:Humanization software for playlist making, for advertising-display management and control easily. With advertising-display record, which make it easy to check AD display status. It's widely used in gaming machine, industrial display, medical, transportation display,banking ATM, touch solution, KIOSK, digital signage, industrial self-service automation, etc
RK3288 media player box is an integration of Multi-media Decoding, LCD Panel Driver, Ethernet, HDMI, WIFI, Audio Amplifier. It supports decoding almost all format of the popular Video and Image. Besides, it supports HDMI output, and is compatible with all type of TFT LCD Panel. It dramatically simplifies integral machine design.
| Hardware Spec | ||||
| System | CPU&GPU | RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764 | ||
| RAM | 2GB/4GB (optional, default 2GB) | |||
| Memory | 16GB/32GB(optional, default 16GB) | |||
| Operating system | Android 7.1 | |||
| Network | WiFi | 802.11b/g/n(2.4G/5G optional, default 2.4G) | ||
| Mobile network | Support full Netcom 4G (optional) | |||
| Bluetooth | Bluetooth 4.0 | |||
| Ethernet | 10M/100 M Ethernet | |||
| Language | Multi-Language support | |||
| Interface | ||||
| Interface | USB interface | Support USB 2.0 host*2 | ||
| Micro USB | USB_Debug interface*1 | |||
| DC | DC power 12V input | |||
| SD card | Maximum support 64GB | |||
| HDMI | Support HDMI output Support 4K 60FPS frame rate | |||
| Screen interface | EDP screen interface / LVDS screen interface(optional) | |||
| Speaker output | 8Ω*5W * 2(optional) | |||
| UART | UART2*1(optional) | |||
| infrared remote control | Support infrared remote control | |||
| USB port expantion | USB port expandert*1(optional) | |||
| RJ45 | 10/100M Ethernet port | |||
| Headset | 3.5mm stereo headphone output | |||
| Media Parameter | ||||
| Media Playback | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160 | ||
| Audio format | MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format | |||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF | |||
| Ebook | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||
| Image Format | JPG,BMP,PNG | |||
| System Management | ||||
| System Management | APK install | APK installer | ||
| Root permission | Original Android system, open root permissions, product customization development | |||
| Remote control | Real-time remote monitoring, 7*24 hours unattended | |||
| OTA upgrade | Support OTA remote upgrade | |||
| Accessories | ||||
| Accessories | Adapter | Power adapter 12V/2A | ||
| User's Guide | E-User Manual | |||
| Warranty Card | Standard | |||
| Size(unit:mm) | ||||
| Product size(L*W*H) | 195*100*20 | |||
| colour box size(L*W*H) | 335*185*65mm | |||
| Carton size(PCS/CTN)(L*W*H) | 350*350*203mm / 5PCS/CTN | |||
| Others Parameters | ||||
| Double screen display | Support Double screen display(optional) | |||
| Gravity induction | Support 0°90°180°270°manual automatic rotation | |||
Sunchip AD-0140 is a multimedia player box that provides an all-in-one solution for digital signage, advertising box and signage box. This multimedia player box is certified with ISO 90001, ISO 27001, CE, ROHS and is available with a minimum order quantity of 2pcs. The multimedia player box is equipped with an EMMC of 16GB/32GB/64GB, optional GPS support and DDR of 2GB/4GB, optional with RK3288 CPU. Power Adpater, AC Cable and Antenna are also included as accessories. Moreover, this multimedia player box is available at a price that is negotiable and has a delivery time of 2-5days with payment terms of TT in advance. With a supply ability of 60000/Month, Sunchip AD-0140 is the perfect choice for any digital signage, advertising box or signage box.
Sunchip Media Player (Model Number: AD-0140)
Packaging and Shipping a Media Player:
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
FAQ
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
