Product Details:
|
| BT Support: | Wifi 6 | Audio Format: | MP3, WAV, WMA, AAC, OGG, Etc. |
|---|---|---|---|
| DDR: | 4GB/8GB/16GB Optional | Ethernet: | Gigabit Ethernet X2 |
| CPU: | RK3588 | Color: | Black |
| Material: | Metal | GPS Support: | Yes, Optional |
| USB: | USB 3.0 X4 | Communicate Ports: | RS232 X2 , RS485 |
| NPU: | 6.0 Top |

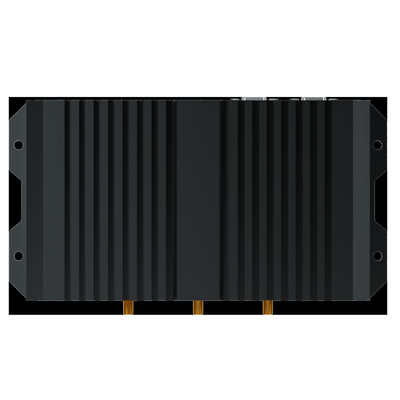

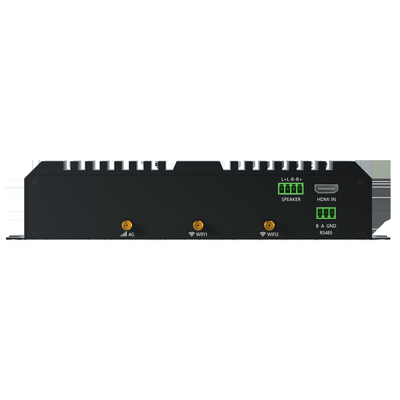

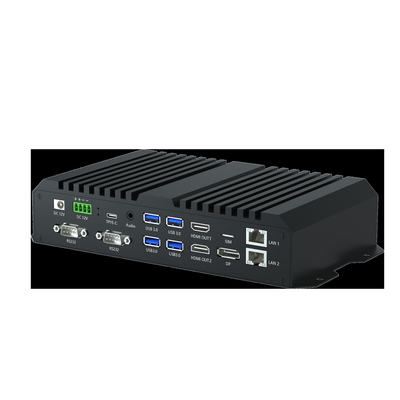

A. Product Name: Edge computing device
| System | CPU | RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55 |
| GPU | ARM Mali G610 MP4 GPU | |
| NPU | INT4/INT8/INT16/FP16 mixed computing capability with up to 6TOPs of computing power (INT8) | |
| RAM | 8GB/16G (optional) | |
| Memory | 32GB/64GB/128GB/256GB (optional) | |
| Operating System | Android 12 |
| Network | WiFi | IEEE 802.11 a/b/g/n/ac |
| Dual wired network | Support 1000M wired network network*2 | |
| Mobile Network | Support wireless 4G network | |
| Bluetooth | BT5.0 |
| Motherboard Interface | TYPE_C | Standard Type_c*1 |
| DC holder*1 | Front 5.5/2.5mm | |
| DC terminal input interface*1 | 4PIN pitch 3.81 terminal power input port*1 | |
| Headphones | 3.5MM support stereo with MIC headphone output port | |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT 1 | Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display) | |
| SIM card | SIM card port*1 | |
| Ethernet port | Support 10/100/1000M Ethernet*1 | |
| Horn | Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81mm green terminals * 1 | |
| HDMI_IN | Support HDMI 2.0_4K input*1 |
| Sub-board interface | RS232 COM port | RS232 output port DB9*2 |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT 2 | HDMI 4K 60HZ output*1 (this interface does not work when HDMI_OUT 1 is selected to output 8K) | |
| DP display interface | DP display output interface*1 7680x4320@30Hz output*1 | |
| Ethernet port | Support 10/100/1000M Ethernet*1 | |
| M.2 internal SSD interface | M.2 built-in SSD expansion interface*1 | |
| RS485 | RS485 3PIN pitch 3.81 green terminal block*1 |
| Environmental parameters | General working temperature/humidity | Temperature:-20-60℃ Humidity 5%-85%RH(non-condensing) |
| General storage temperature/humidity | Temperature:-20-70℃ Humidity 5%-85%RH(non-condensing) | |
| Housing | Color | Black |
| Material | Aluminum alloy + metal profile | |
| Size | Motherboard Size | 200*125mm |
| Sub-board size | 200*125mm | |
| Whole machine size | 244*128*49.5mm | |
| Other | Indicator light | Red and blue 2 colors |
| Button | Upgrade key*1 | |
| Power adapter | DC:12V/3A |
Sunchip AD-0160, a 1080p fullhd digital media player, is a perfect digital signage box. It is certified by ISO 90001, ISO 27001 ,CE, ROHS and is qualified to meet all your needs. With BT support, WIFI support, and the powerful RK3588 CPU, it is capable of playing any image format (JPEG, PNG, GIF, Etc.) and advertisement smoothly.
The box player advertisement comes with 2pcs in each box, with power adapter, AC cable, and antenna as accessories. The minimum order quantity is 2pcs and the price can be negotiated accordingly. With a supply ability of 60000/Month, it guarantees a fast and efficient delivery time of 1-5 days, and it accepts payment terms of TT in advance.
We provide the following support and services for our Media Player product:
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.
Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you!
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Floor Standing Display, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
NEW Released RK3588 super powerful mainboard :
