Product Details:
|
| Image Rotation: | Support 0 Degree, 90 Degrees, 180 Degrees, 270 Degrees Manual / Automatic Rotation, Support Gravity Sensing Function | RAM: | 4GB LPDDR4 |
|---|---|---|---|
| OS: | Android 7.1/ Android 9.0/ Android 10 | IR: | Yes |
| Expansion: | Micro SD Card | Serial Port: | 3x UART , Support External Serial Device (NFC Module, Printer, Card Reader, Etc.) |
| GPU: | Mali-T860MP4 | CPU: | Rockchip RK3399 Dual Core Cortex-A72+ Quad Core Cortex-A53 CPU |
| High Light: | RK3399 CPU Embedded System Board,Gravity Sensing Embedded System Board,Gravity Sensing RK3399 Board |
||

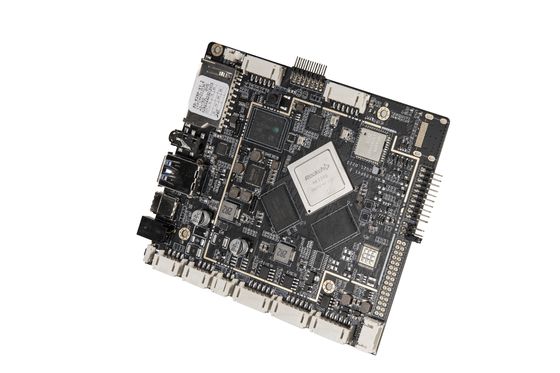

RK3399 Board is a LVDS TFT android board powered by Rockchip's RK3399 SOC. It has two MIPI X2 camera interfaces and a USB Type interface. It also supports DC 12V/2A power supply, IR, image rotation and Bluetooth 5.2. The image rotation function supports 0 Degree, 90 Degrees, 180 Degrees, 270 Degrees Manual / Automatic Rotation, and also supports gravity sensing function. With its rich features, RK3399 Board is suitable for applications such as video playback, smart retail, interactive advertising and industrial automation.
AD-K28P is one of the AI control motherboard, with rich control interfaces and external extension interfaces, perfectly supports the information release system, supports remote production, release, management and real-time update of programs, and supports local/network timing on and off;
The product has a wide range of applications in smart display terminals, industrial automation terminals and video terminals. For example: digital signage, intelligent self-service terminal, new retail intelligent terminal, O2O intelligent equipment, intelligent display, building intercom, etc.
| Parameter | Description |
|---|---|
| BT | 5.2 |
| IR | Yes |
| OS | Android 7.1/ Android 9.0/ Android 10 |
| Size | 107.9mm X 95mm |
| Audio | 3.5mm Audio Jack |
| ROM | 16GB/32GB/64GB EMMC Optional |
| Camera | MIPI / USB Type Supported |
| POE | Yes |
| Display | LVDS / EDP / HD 2.0 /MIPI |
| GPU | Mali-T860MP4 |
| Board | Rockchip RK3399 Board |
| 4G Support | Yes |
| LCD | EDP LCD |
Sunchip AD-K28P Android Board - Embedded Board with Rockchip 3399
Sunchip AD-K28P Android Board is an embedded board with Rockchip 3399. It comes with a 107.9mm X 95mm size and has a Power Over Ethernet (POE) capability. It has an optional ROM that ranges from 16GB to 64GB EMMC. It is equipped with a Mali-T860MP4 GPU and a 4GB LPDDR4 RAM.
This embedded board is perfect for a wide range of applications such as digital signage, robotics, industrial automation, surveillance, gaming, education, smart home, and many more. It also supports the latest Android 9.0 Pre OS, allowing developers to create more advanced applications.
Sunchip AD-K28P Android Board is an excellent choice for developers who need a robust and reliable embedded board that can be integrated into their applications. It is perfect for applications such as high-end internet of things (IoT), artificial intelligence (AI), virtual reality (VR), augmented reality (AR), and machine learning (ML).
Sunchip AD-K28P is an LVDS TFT android board, embedded board, PCBA that comes with IR, BT 5.2, and WiFi 802.11 A/b/g/n/ac. It has a size of 107.9mm X 95mm and 4GB LPDDR4 RAM.
1. PCBA design
2. Housing design
3. Software and hardware customization
4. Logo print on housing
5. Software customization: Booting image, Boot animation,UI, Launcher, APP, Function
6. Good quality products
7. full after-sales service with technology support
8.100% QC check before shipping
The RK3399 board will be packaged in an anti-static bag or a static-shielding bag, and then placed in a box for shipping.
The box should be marked with the product name and model number for easy identification.
The box should also be marked with the shipper's name, address, and phone number.
The package should be sealed with strong tape to ensure that the contents won't be damaged during shipping.
The package should also include the necessary documents such as the invoice, shipping list, and product information.
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
We mainly manufacture
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
