RK3399 Six Core Computer Board , I2C Interface Android 7.0 3 Micro PC Board

RK3399 Six Core Computer Board , I2C Interface Android 7.0 3 Micro PC Board

RK3399 Six Core Computer Board , I2C Interface Android 7.0 3 Micro PC Board

Product Details:

Place of Origin: China
Brand Name: ADW
Model Number: AD-K01

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD70~110/pc
Packaging Details: 1pc/bubble bag, proper qty in a carton
Delivery Time: 1~3 days if have stock, 30days if no stock
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs per month
Contact Now
Detailed Product Description
CPU: RK3399 Six Core Dual Core Cortex A72+quad Core Cortex A53 GPU: Mali-T860 MP4
RAM: 2GB,4GB Optional EMMc: 8GB,16GB,32GB Optional
Diaplay Interface: LVDS, Single, 6 Way, 8 Way. Support 7"~84" Display EDP Interface: Support Resolution 1920*1080P
Internet: RJ45, Support 10M/100M/1000M Ethernet WIFI: Support 802.11b/g/n/ac Protocol
Bluetooth: BT4.0 OS: Android 7.0

RK3399 Six Core Embedded System Board Android 7.0 3 Different Display Interface

Overview:

Intelligent industrial board, using Rockchip RK3399 six-core chip program to support Google Android 7.0 above system. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. For intelligent remote network control: industrial, medical, large advertising machine, educational video terminals and other equipment.



Characteristic:

  •  Support 7-inch to 84-inch LVDS interface display (point-to-point full HD display 1920 * 1080).
  •  A variety of interactive mode interface: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.
  •  A variety of network interfaces: Ethernet, wireless WiFi, Bluetooth.
  •  Multi-channel USB interface, serial port, IO port output.
  •  Support 4K video play and HDMI 2.0 HD output.
  •  Strong anti-electromagnetic interference and electromagnetic compatibility.







Chapter 2 Product Specifications


RK3399 Six Core Computer Board , I2C Interface Android 7.0 3 Micro PC Board





RK3399 Six Core Computer Board , I2C Interface Android 7.0 3 Micro PC Board



  •  Basic hardware specifications
CPU Rockchip RK3399 daul core Cortex-A72+quad-core Cortex-A53 CPU
GPU ARM Mali-T860MP4 GPU
RAM DDR3 2G/4G Optional
Built-in storage capacity EMMC 8GB/16G/32G/64G Optional(Label 8GB)
Display interface LVDS interface (single, 6 dual, 8 dual). Support the maximum resolution of 1920x1080, support 7 "-84" display
EDP screen interface, support for resolution 1920x1080
Onboard backlight Support 3.3V/5V/12V Optional
Touch screen

Provide I2C interface (can support multi-point resistance touch, multi-point capacitance touch).

Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch.

Internet With RJ45 interface, support for 10/100 Ethernet
With Wifi & BT module, support for Wi-Fi 802.11b / g / n / ac protocol. Support BT4.0
Image rotation Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support for gravity sensing
Real Time Clock Built-in real-time clock battery
Interface equipment Support MIPI interface camera, up to 500W pixels
Support USB camera
4 USB HOST, 1 USB OTG (support POE power supply)
3 groups of serial port. Supports external serial device devices (3G module, NFC module, printer, swipe card reader, etc.)
3 IO test port
SD card, maximum support 64GB
Class D amplifier: 1.5W * 2 8 ohm, support for the microphone
HDMI 2.0 output
Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
Video Support for 2160P @ 24FPS decoding of video formats such as H.264, MPEG2, VP6, VP8, MVC, etc. Online videos from YouTube, up to 1080P, HTML5 video playback, Flash 10.1 playing.
Picture Support for JPG, BMP, PNG and other image formats Browse and support rotation / slide show / image zoom function
Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V 3A
  •  Basic software specifications
Operating system Google Android 7.0
Basic software features Web browsing, web chat, e-mail, e-books, resource managers
Sound mode Clock, alarm clock, calculator, recording
Voice support Multi-national voice
Recording Support MP3, WMA format recording
Tool Calendar
Alarm Clock
Calculator
Note
Weather + clock
Recording
File processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule Calendar
Input method Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Internet Browser -ChromeLite
Email
Gmail
System Management APK Installer
Original Android system, open root privileges, product development can be customized
Real-time remote monitoring, system crash self-recovery, 7 * 24 hours unattended
Support OTA remote upgrade
System setting
Google Maps
Global time



Appendix



Product picture

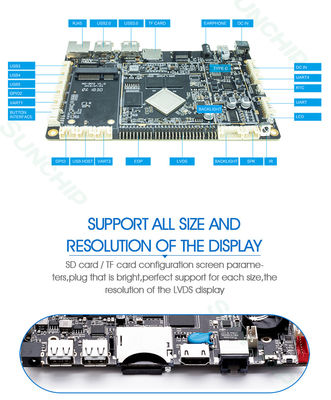

Front side:

RK3399 Six Core Computer Board , I2C Interface Android 7.0 3 Micro PC Board





Opposite:

RK3399 Six Core Computer Board , I2C Interface Android 7.0 3 Micro PC Board
