Product Details:
|
| CPU: | RK3588 8-core CPU 8nm Process 4 Cortex-A76 And 4 Cortex-A55 | GPU: | ARM Mali G610 MP4 GPU |
|---|---|---|---|
| OS: | Android 12 | 4G LTE: | Support Wireless 4G Network |
| LAN: | Support 1000M Wired Network Network*2 | RAM: | 8GB/16G (optional) |
| Material: | Metal Case | USB3.0: | X 4 |
| HD IN: | 1 | HD OUT: | 2 |
| High Light: | Metal 8K Media Player Box,Android 12 8K Media Player Box,RK3588 HD Media Player Box |
||
RK3588 8K Media Player Box Octa Core Android 12 Metal Box with Dual LAN HD IN RS232 RS485
Ultra High-Performance RK3588 8K Media Player box
Octa-Core Android 12 Metal industrial control player box Dual LAN
Player box Main Features:
1. Octa-Core, 8K output, 4K hardware decoding; Main frequency up to 2.4GhZ;
2. RK3588 performance is higher 3.3 times than RK3399, Android 12 OS;
3. Rich interfaces,Network: 2.4G & 5G WIFI; Bluetooth 5.0; 4G LTE Optional; Dual 1000M LAN;
4. Build-in M.2 SSD Extended interface (SSD optional)
Player box Features:
A. Support multiplexed display (single-port maximum support 7680*4320 60HZ)
B. Multiple interaction mode interface: capacitive touch, infrared remote control, USB keyboard and mouse, multi-point optical touch. Multiple network interfaces: Ethernet, wireless WIFI, Bluetooth.
C. Multiple USB interfaces, RS3232, RS485 serial ports.
D. Strong resistance to electromagnetic interference and electromagnetic compatibility.
Player box Specification:
| System | CPU | RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55 |
| GPU | ARM Mali G610 MP4 GPU | |
| NPU | 6Tops, int4/int8/int16/FP16 | |
| MCU | for low power control | |
| RAM | 8GB/16G (optional) | |
| Memory | 32GB/64GB/128GB/256GB (optional) | |
| Operating System | Android 12 | |
| Network | WiFi | IEEE 802.11 a/b/g/n/ac |
| Dual wired network | Support 1000M wired network network*2 | |
| Mobile Network | Support wireless 4G network | |
| Bluetooth | BT5.0 | |
| Motherboard Interface | TYPE_C | Standard Type_C*1 |
| DC holder*1 | Front 5.5/2.5mm | |
| DC terminal input interface*1 | 4PIN pitch 3.81 terminal power input port*1 | |
| Headphones | 3.5MM support stereo with MIC headphone output port | |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT A port | Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for single HDMI display) | |
| SIM card | SIM card port*1 | |
| Wired network port | RJ45 network port*1 | |
| Horn | Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81 green terminals * 1 | |
| HDMI_IN | Support HDMI 2.0_4K input*1 |
| Sub-board interface | RS232 COM port | RS232 output port DB9*2 |
| USB 3.0 | USB 3.0_A port*2 | |
| HDMI_OUT A port | Support HDMI 4K60HZ output*1 | |
| DP display interface | DP display output interface*1 7680x4320@30Hz output*1 | |
| Wired network port | RJ45 network port*1 | |
| M.2 internal SSD interface | M.2 built-in SSD expansion interface*1 | |
| RS485 | RS485 3PIN pitch 3.81 green terminal block*1 | |
| Environmental parameters | General working temperature/humidity | -20℃-60℃, 30%RH-60%RH |
| General storage temperature/humidity | 22±4℃ , 30%RH-60%RH | |
| Housing | Color | Black |
| Material | Profile | |
| Size | Motherboard Size | 200*125mm |
| Sub-board size | 200*125mm | |
| Whole machine size | 244*128*49.5mm | |
| Other | Indicator light | Red and blue 2 colors |
| Button | Upgrade key*1 | |
| Power adapter | DC:12V/3A |

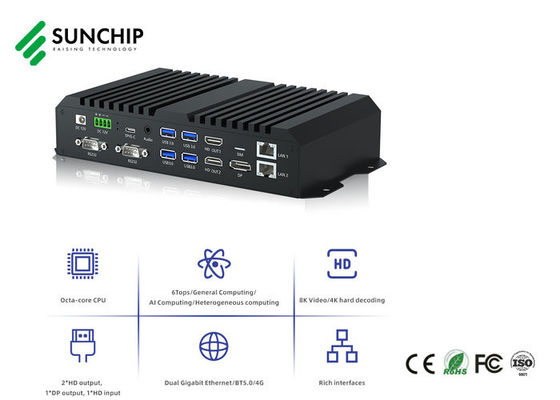

Product Pictures:
