High Performance Embedded CPU Motherboard RK3188 1.6Ghz TF Card USB Host RJ45 Interface

High Performance Embedded CPU Motherboard RK3188 1.6Ghz TF Card USB Host RJ45 Interface

    • High Performance Embedded CPU Motherboard RK3188 1.6Ghz TF Card USB Host RJ45 Interface
    • High Performance Embedded CPU Motherboard RK3188 1.6Ghz TF Card USB Host RJ45 Interface
  • High Performance Embedded CPU Motherboard RK3188 1.6Ghz TF Card USB Host RJ45 Interface

    Product Details:

    Place of Origin: China
    Brand Name: ADW
    Model Number: AD-Z33L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD45~USD70/pc
    Packaging Details: 1pc/bubble bag, proper qty in a carton
    Delivery Time: 1~3days if have stock, 30 days if out of stock
    Payment Terms: T/T, Western Union
    Supply Ability: 1,000,000pcs per month
    Contact Now
    Detailed Product Description
    CPU: Rockchip3188 Quad Core Frequency: 1.6GHz
    Diaplay Interface: LVDS(single, 6 Dual, 8 Dual) EDP Screen Interface: Support Resolution 1920*1080P
    Touch Screen: I2C Interface Internet: RJ45 Interface, Support 10M/100M Ethernet
    USB: USB2.0 HDMI: HDMI Out
    RAM: 1GB,2GB Optional EMMC: 8GB,16GB,32GB Optional

    Embedded System Board RK3188 1.6Ghz Motherboard TF Card USB Host



    Summary:

    RK3188 Android all in one board, using Rockchip RK3188 quad-core chip program, support Google Android 4.4 system. Support the mainstream audio and video formats and picture decoding. Dual 8-bit LVDS interface 1920 * 1080, can drive 7 "to 82" display. Exclusive support for 3G module Internet access, rich interface, so that products become more common, widely used in advertising machines, one machine, security, industrial control, and so on intelligent control. Because of its hardware platform, Android intelligent features, in the need for human-computer interaction, network equipment, interactive, intelligent terminal platform can be used.

    Feature:

    •  High performance. RK3188 chip using quad-core A9 program, is currently on the market one of the most powerful quad-core chip. Using the chip RK3188 motherboard program, compared to the common market of single-core, dual-core, quad-core program, a qualitative leap in performance, able to play a variety of formats high-definition video, can handle complex interactive operation.



    •  High stability. RK3188 Andrews board, in hardware, software, to increase their own unique technology to ensure product stability, can make the final product to 7 * 24 hours unattended.



    •  Highly integrated. RK3188 Andrews integrated board integrated Ethernet, wifi, Bluetooth, amplifier, SD card, 3G data interface, backlight power supply and so on, greatly simplifying the machine design. Ultra-thin motherboard design, make the machine design more beautiful.



    •  High scalability. 4 USB HOST, 3 serial ports, can expand more peripherals.

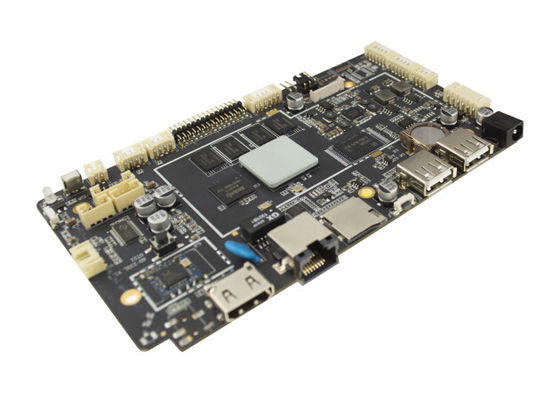

    Product picture

    High Performance Embedded CPU Motherboard RK3188 1.6Ghz TF Card USB Host RJ45 InterfaceHigh Performance Embedded CPU Motherboard RK3188 1.6Ghz TF Card USB Host RJ45 Interface



    Basic hardware specifications:

    CPU Rockchip RK3188 quad core Cortex-A9 quad core GPU Mail-400 @ 533MHz
    Frequency 1.6 GHz
    RAM DDR3 1G/2G Optional
    Built-in storage capacity EMMC FLASH 8GB/16G/32G Optional(Label 8GB, available NAND)
    Display interface LVDS interface (single, 6-way, 8-bit dual). Support maximum resolution 1920x1080, support 7 "-82" display
    Mainboard backlight Support 3.3V / 5V / 12V optional
    Touch screen

    Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch).

    Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch.

    Internet With RJ45 interface, support Ethernet.
    With wifi & BT module, support Wi-Fi 802.11b / g / n protocol. Support BT4.0
    Image rotation Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
    Real Time Clock Built-in real-time clock powered battery
    System watchdog Support software, hardware watchdog
    Interface device Support DVP interface camera, the maximum support 500W pixels
    Support USB camera
    4 USB HOST,1 USB OTG
    3 groups of serial ports. Support external serial device module (3G module, NFC module, printer, card reader, etc.)
    4 IO detection port
    SD card, maximum support 32GB
    D class Large built-in speaker,3W*2 8R
    Support microphones
    Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
    Video Support H.264, VP8, RV, WMV, AVS, H.263, MPEG4 and other video formats 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play
    Picture Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom
    Power Adapter Input:AC100-240V.50-60HZ, Output: DC12V 3A






    Basic software specifications:

    Operating system Google Android 4.4
    Basic software functions Web browsing, web chat, e-mail, e-books, and resource managers
    Sound mode Clock, alarm clock, calculator, recording
    Language support Multi-lingual
    Recording Support MP3, WMA format recording
    Tool Calendar
    Alarm Clock
    Calculator
    Note
    Weather + clock
    Record
    Document processing EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
    Ebook PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
    Schedule Calendar
    Input method Standard Andriod keyboard, optional third party input method (Chinese, Korean, Japanese, etc.)
    Internet Browser -ChromeLite
    GOOGLE Market
    Email
    Gmail
    Google talk
    System Management APK Installer
    The original eco-Android system, open root privileges, can be customized product development
    Real-time remote monitoring, system crash since recovery, 7 * 24 hours unattended
    System setting
    Google Maps
    Global time
    Support OTA remote upgrade
