Product Details:
|
| CPU: | RK3399 Six Core Dual Core Cortex A72+quad Core Cortex A53 | GPU: | Mali-T860 MP4 |
|---|---|---|---|
| RAM: | 4GB | EMMc: | 16GB |
| Diaplay Interface: | LVDS, Single, 6 Way, 8 Way. Support 7"~84" Display | EDP Interface: | Support Resolution 1920*1080P |
| Touch Screen: | I2C Interface | Internet: | RJ45, Support 10M/100M/1000M Ethernet |
| WIFI: | Support 802.11b/g/n/ac Protocol | Bluetooth: | BT4.0 |
| High Light: | CPU RK3399 Android Embedded Board,Dual Channel WiFi RK3399 Board,USB3.0 RK3399 Board |
||

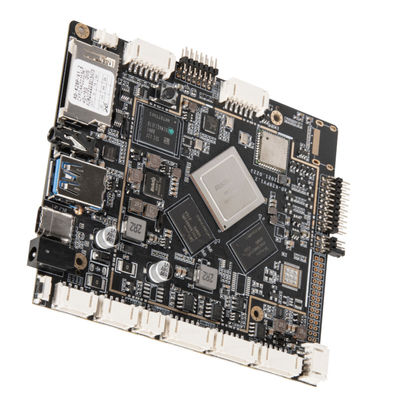

Intelligent industrial board, using Rockchip RK3399 six-core chip program to support Google Android 7.0 above system. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. For intelligent remote network control: industrial, medical, large advertising machine, educational video terminals and other equipment.
Android Embedded Board Specifications
Hardware specifications
| CPU | Rockchip RK3399 daul core Cortex-A72+quad-core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| RAM | DDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G Optional(Label 8GB) |
| Display interface | LVDS interface (single, 6 dual, 8 dual). Support the maximum resolution of 1920x1080, support 7 "-84" display |
| EDP screen interface, support for resolution 1920x1080 | |
| Onboard backlight | Support 3.3V/5V/12V Optional |
| Touch screen |
Provide I2C interface (can support multi-point resistance touch, multi-point capacitance touch). Support USB multi-point infrared touch, multi-point acoustic touch, multi-point optical touch. |
| Internet | With RJ45 interface, support for 10/100/1000 Ethernet |
| With Wifi & BT module, support for Wi-Fi 802.11b / g / n / ac protocol. Support BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support for gravity sensing |
| Real Time Clock | Built-in real-time clock battery |
| Interface equipment | Support MIPI interface camera, up to 500W pixels |
| Support USB camera | |
| USB HOST, 1 USB OTG (support POE power supply) | |
| 3 groups of serial port. Supports external serial device devices (3G module, NFC module, printer, swipe card reader, etc.) | |
| 3 IO test port | |
| SD card, maximum support 64GB | |
| Class D amplifier: 1.5W * 2 8 ohm, support for the microphone | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support for 2160P @ 24FPS decoding of video formats such as H.264, MPEG2, VP6, VP8, MVC, etc. Online videos from YouTube, up to 1080P, HTML5 video playback, Flash 10.1 playing. |
| Picture | Support for JPG, BMP, PNG and other image formats Browse and support rotation / slide show / image zoom function |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
| Operating system | Google Android 7.0 |
| Basic software features | Web browsing, web chat, e-mail, e-books, resource managers |
| Sound mode | Clock, alarm clock, calculator, recording |
| Voice support | Multi-national voice |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input method | Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| Gmail | |
| System Management | APK Installer |
| Original Android system, open root privileges, product development can be customized | |
| Real-time remote monitoring, system crash self-recovery, 7 * 24 hours unattended | |
| Support OTA remote upgrade | |
| System setting | |
| Google Maps | |
| Global time |
