|CPU&GPU:||Rockchip RK3288 Quad-core||RAM:||DDR4 2G/4G Optional|
|Internal Memory:||EMMC 16G/32G/64G Optional (label 16GB)||Display Interface:||LVDS/EDP|
|Screen Voltage:||Support 3.3V/5V/12V Optional||Operating System:||Android 7-10|
|Resolution:||4k, 1080p,720p, XGA|

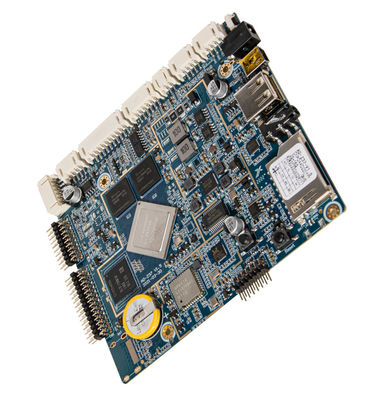

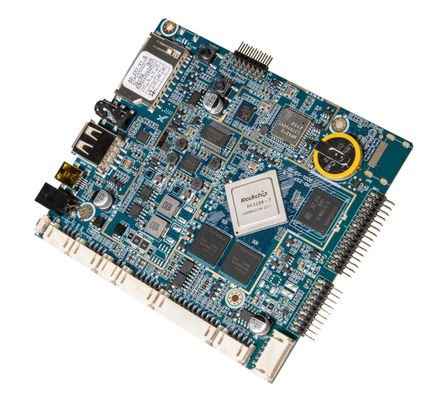

Industrial Control Android Embedded Board,
Quad Core Android Embedded Board,
RK3288 Android PCBA Motherboard
Model: AD-Z37 V1.5
The intelligent industrial all-in-one board adopts the Rockchip RK3288 quad-core chip solution and supports Android 8.0 and above systems. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. It is suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machine, educational video terminal and so on.
- Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).
- Support EDP interface display screen.
- Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB keyboard and mouse, multi-point optical touch.
- Multiple network interfaces: Ethernet, wireless WIFI, Bluetooth.
- Multi-channel USB interface, serial port.
- Support 4K video playback and HDMI 2.0 high-definition output.
- Strong anti-electromagnetic interference and electromagnetic compatibility.
Basic hardware specifications:
|CPU||Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764|
|RAM||LPDDR3 2G/4G Optional|
|Built-in storage capacity||EMMC 8GB/16G/32G/64G Optional|
|LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display|
|Screen voltage||Support 3.3V/5V/12V optional|
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch).
Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
|With RJ45 interface, support 10/100 Ethernet.|
|Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0|
|Image rotation||Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function|
|Real Time Clock||Built-in (optional external) real-time clock power supply battery|
|Support MIPI interface camera, up to 500W pixels|
|3 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)|
|3 groups of serial ports. Support external serial port device modules (3G module, NFC module, printer, card reader, etc.)|
|SD card, maximum support 32GB|
|Class D power amplifier: 3W*2 8 ohms, support microphone|
|HDMI 2.0 output|
|Audio||MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format|
|Video||Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback|
|Picture||Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function|
|Power Adapter||Input: AC100-240V.50-60HZ, output: DC12V 3A|
Basic software specifications:
|Operating system||Android 8.0 and above|
|Basic software functions||Web browsing, web chat, email, e-book, resource manager|
|Sound effect mode||Clock, alarm clock, calculator, recording|
|Recording||Support MP3, WMA format recording|
|Weather + clock|
|Word processing||EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT|
|Input||Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)|
|System Management||APK installer|
|The original ecological Android system, open root permissions, can be customized product development|
|Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended|
|Support OTA remote upgrade|
