Product Details:
|
| Cpu: | Rockchip RK3568 Quad-core 64-bit Cortex-A55, GPU Mali-G52 | Frequency: | Up To 2.0 GHz |
|---|---|---|---|
| Display Interface: | LVDS/MIPI/EDP/HD | Operating System: | Android 11 |
| Products Status: | Stock | Application: | Digital Signage,koisk,Advertising Machine |
| RAM: | DDR4 2G/4G Optional | Internal Memory: | EMMC 8GB/16G/32G/64G Optional (label 16GB) |
| Screen Voltage: | Support 3.3V/5V/12V Optional | Language: | Multi-language |
| High Light: | Android 11 LVDS Embedded Arm Board,Advertising Machine Development Embedded Arm Board,MIPI 4K HD Embedded Arm Board |
||
Sunchip Embedded Board RK3566 Quad Core A55 MIPI LVDS EDP HD Supported industrial arm development board for kiosk menu
Model: AD-C36
CPU: Rockchip RK3566 Quad-core A55, up to 1.8GHz
RAM: 2G DDR4
ROM: EMMC 16G/32G/64G optional
OS: Android 11
Display: HD, LVDS, EDP, MIPI
LAN: 10/100M Ethernet
WIFI/BT: 2.4G WIFI & BT4.0
4G LTE: 4G Network Optional
G-sensor: Auto-rotation & rotate manually
RTC: Real-Time-Clock
Touch: I2C and USB TP
Serial ports: UART *3
USB: internal USB *4 + external USB *2
Extended Storage: TF Card Slot *1
TYPE-C: OTG port

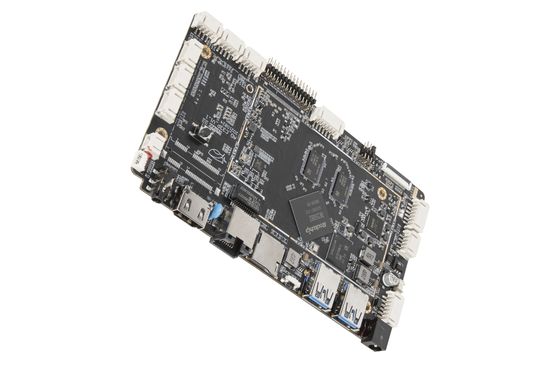

Android 11 embedded arm board RK3568 advertising machines Development Board DDR4 LVDS EDP MIPI 4K HD out for menu hall
Product Pictures:
Basic hardware specifications:
| CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency | Up to 2.0 GHz |
| RAM | DDR4 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
|
Display interface
|
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display |
| MIPI interface | |
| EDP interface | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
|
The internet
|
With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with WIFI &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | External real-time clock power supply battery |
|
Interface device
|
Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Basic software specifications:
| Operating system | Android 11 system |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
|
Tool
|
Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
|
|
|
Network
|
Browser -Chrome Lite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation) |
| Original ecological Android system, open root permission, can carry out product customization development | |
| Customizable local or remote server management system | |
| Support a variety of third-party Android remote advertising systems | |
| Support multiple serial devices, USB devices | |
| Support dual-screen different display |
Sunchip Office:
SUNCHIP product list:
1, Android industrial Embedded board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android media player box for digital signage advertising: RK3399, RK3288, RK3328.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Stretched lcd Display signage, support ODM.
5, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
6, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
7, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
8, Embedded touch desk: such as 32inch.
9, Face recognition temperature detection terminal machine: such as 8inch.
[you can also tell us your requirements, so that we advise you a matched solution]
