Product Details:
|
| CPU: | RK3288 | Frequency: | 1.8GHz |
|---|---|---|---|
| RAM: | LPDDR3 2G/4G Optional | Display Interface: | MIPI, EDP, HD |
| Network: | RJ45 Interface, Support 10/100 Ethernet | Real Time Clock: | Built-in Real-time Clock Powered Battery |
| Audio: | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP | Video: | Support 2160P @ 24FPS Decoding Such As H.264, MPEG2, VP6, VP8, MVC And Other Video Formats |
| High Light: | RK3288 Android ARM Board,Multi Interaction Android ARM Board,Multi Interfaces Embedded ARM Board |
||

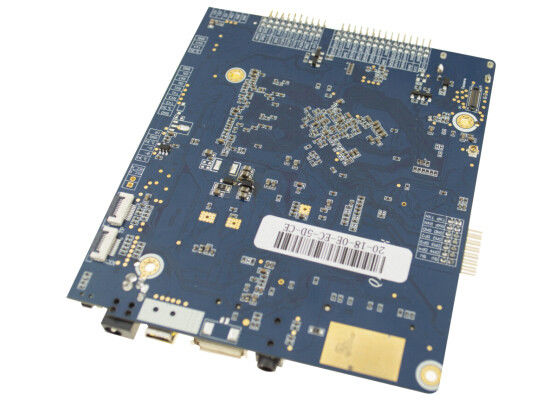

Quad-core RK3288 Android ARM Board for Multi Interaction & Network Interfaces
Model No: AD-Z37M
Product Overview
Smart industry all in one board, using Rockchip RK3288 quad-core chip program, support Google Android4.4 and 5.1 above system. Powerful computing power. Support H.265 4K video playback. Interface rich, enhanced power management circuit. Applicable to intelligent remote network control: class industry, medical, large advertising machine, educational video terminal and other equipment.
Feature
Basic Hardware Spec:
| CPU | Rockchip RK3288 quad-core Cortex-A17 quad-core GPU Mali-T764 |
| Frequency | 1.8 GHz |
| RAM | DDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional(defaulted 8GB) |
| Display interface | MIPI, Max. 1920*1080P. |
| EDP, max. resolution 4K | |
| Mainboard backlight | Support 3.3V/5V/12V Optional |
| Touch screen |
Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch. |
| Network | With RJ45 interface, support 10/100 Ethernet. |
| With Wifi & BT module, support Wi-Fi 802.11b / g / n / ac protocol(optional) Support BT4.0 | |
| Image rotation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock | Built-in real-time clock powered battery |
| Interface device | Support MIPI Camera |
| 4 USB HOST,1 USB OTG (Support usb camera @500W, usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| Serial ports x 3. Support external serial device module (3G module, NFC module, printer, card reader, etc.) | |
| SD card, maximum support 32GB | |
| Class D power amplifier: 1.5W * 2 8 Europe, support for the microphone | |
| HDMI 2.0 output format | |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP |
| Video | Support 2160P @ 24FPS decoding such as H.264, MPEG2, VP6, VP8, MVC and other video formats. YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play |
| Picture | Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom |
| Power Adapter | Input:AC100-240V.50-60HZ, Ouput: DC12V 3A |
Basic Software Spec:
| Operating system | Above Google Android 4.4 &5.1 /LINUX Debian |
| Basic software functions | Web browsing, web chat, e-mail, e-books, and resource managers |
| Sound mode | Clock, alarm clock, calculator, recording |
| Language support | Multi-lingual |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| Document processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Andriod keyboard, optional third party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -ChromeLite |
| GOOGLE Market | |
| Gmail | |
| Google talk | |
| System Management | APK Installer |
| Original eco-Android system, open root privileges, can be customized product development | |
| Real-time remote monitoring, system crash since recovery, 7 * 24 hours unattended | |
| System setting | |
| Google Maps | |
| Global time | |
| Support OTA remote upgrade |
