Product Details:
|
| CPU: | RK3566, RK3568, RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128 Etc. | Application: | Indoor, Embedded, Wall Mounted |
|---|---|---|---|
| OS: | Android 4.4/5/6/7/8/9/10/11 Version | Material: | Metal Case |
| RAM: | 1GB/2GB/4GB (optional) | ROM: | 8GB/16GB/32GB (optional) |
| Touch: | Optional | Size: | 8'', 10.1'', 13.3'', 15.6'', 21.5'' Etc. Optional |
| WIFI: | 2.4g Or 5g WIFI Optional | LAN: | 100M Or 1000M Ethernet Optional |
HD Open Frame 10.1 interactive digital signage with WIFI BT LAN 4G metal case RS232 UART
Products Description:
It can be directly applied to a variety of products. Such as Computing Storage, Smart Robot, Game Equipment, Commercial Display, Medical Equipment, Vending Machine, Intelligent POS, Interactive Printer etc.
A. Powerful Hardware Decoding Capability
It supports LVDS/EDP/ HD-MI display interfaces, 4K hardware decoding, dual-screen identical display/dual-screen differential display, and can drive the mainstream 5~100-inch display directly.
B. Sunchip-RK3288 High-Performance Platform
Sunchip-RK3288 is an all-in-one high-performance multi-core computing platform.
It features powerful graphics processing and video decoding ability,
and support for Android 7-10 OS.
It will become extra ordinary with your creativity.
C. Application:
RK3288 can be directly applied to a variety of products. Such as Computing Storage, Smart Robot, Game Equipment, Commercial Display, Medical Equipment, Vending Machine, Intelligent POS, Interactive Printer etc.
| System | CPU |
RK3566, RK3568, RK3288, RK3399, RK3328, RKPX30, RK3188, RK3128 etc. |
| RAM | 1GB/2GB/4GB (optional) | |
| Internal memory | 8GB/16GB/32GB (optional) | |
| Operation system | Android 4.4/5/6/7/8/9/10/11 Version | |
| Touch screen | 10-point capacitive touch (optional) | |
| Display | LCD Panel | 8'', 10.1'', 13.3'', 15.6'', 21.5'' etc. optional |
| Resolution | 1280*800, 1920*1080P | |
| Contract Ratio | optional | |
| Luminance | optional | |
| Aspect Ratio | optional | |
| Network | WIFI | 802.11b/g/n (2.4G/5G WIFI Optional) |
| Mobile network | Support full Netcom 4G (optional) | |
| Bluetooth | Bluetooth 4.0/5.0 optional | |
| Ethernet | 10M/100M or 1000M Ethernet optional |
| Interface | USB interface | Support USB2.0 host*1 | ||||||||||||
| Micro USB | Support USB3.0 host*1 | |||||||||||||
| Type-c interface | Type-c*1 | |||||||||||||
| DC | DC power 12V input | |||||||||||||
| TF card | Maximum support 64GB | |||||||||||||
| HDMI | Support HDMI_4K 2.0 out | |||||||||||||
| Screen interface | EDP screen interface_2K output / LVDS screen interface 1080P output(optional) | |||||||||||||
| speaker | 8Ω*5W * 2(optional) | |||||||||||||
| UART | UART2*1(optional) | |||||||||||||
| IR Remote Control | Support infrared remote control | |||||||||||||
| RJ45 | Ethernet port | |||||||||||||
| Headset | 3.5mm stereo headphone output | |||||||||||||
| Key | Key | Power V+ V- | ||||||||||||
| Media play | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160 | ||||||||||||
| Audio format | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP etc. | |||||||||||||
| Text processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, | |||||||||||||
| E-book | PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2 | |||||||||||||
| Photo | JPG,BMP,PNG | |||||||||||||
system management |
APK install | APK installer | ||||||||||||
| Root permission | Original ecological Android system, open root permissions, customizable development | |||||||||||||
| Remote control | Real-time remote monitoring, system crash self recovery, 7*24 hours unattended | |||||||||||||
| OTA upgrade | Support OTA remote upgrades | |||||||||||||
| Camera | Pre 500W (default none , optional) | |||||||||||||
| Language | Multi-language | |||||||||||||
| Others | Dual screen different display | Support dual-screen different display function (optional) | ||||||||||||
| VESA interface | Support 75*75mmVESA interface | |||||||||||||
| Gravity Sensor | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation | |||||||||||||
| Accessories | Adapter | Adapter,12V/2A | ||||||||||||

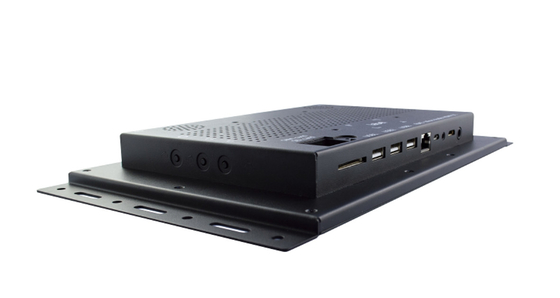

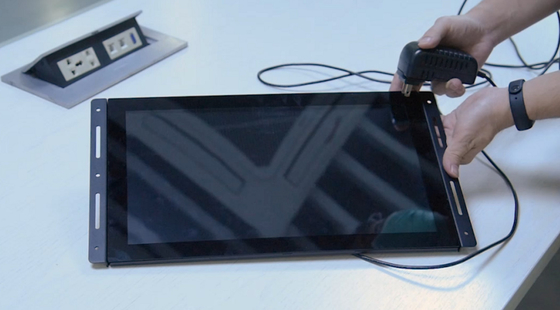

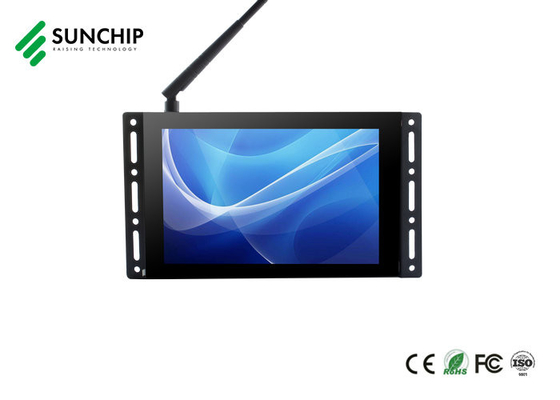

Products Pictures:
Application Scenarios:
Packing & Delivery:
Why Choose SUNCHIP:
Sunchip is a software and hardware solution provider, retailer store digital signage display solution provider, and it’s located in Shenzhen, China.
Sunchip has a huge R&D team which more than 80 employees.
They include hardware layout engineer, hardware debugging engineer, ID design engineer, mechanical design engineer, android kernel software engineer, android driver software engineer, apk development engineer, FAE software test engineer, and so on.
So, if our clients choose Sunchip, don’t need to worry about anything, we can provide one-stop service for them.
Introduction of the advantages from Sunchip:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
FAQ.:
1. who are we?
We are based in Guangdong, China, started from 2011, there are total about 160-200 people in our office.
2. how can we guarantee quality?
Always sample testing, aging testing before shipping;
Always final Inspection before shipment;
3.what can you buy from us?
AIO Advertising machine, Commercial media box, ARM board;
4. why should you buy from us not from other suppliers?
More than 10 years of R&D and production experience
More than 100 R&D team
Over 3000 square meters' factory space
Processing fully automatic assembly lines and high request working team
Owning CE/ROHS/FCC & national high-tech enterprise and patents
5. what services can we provide?
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, Credit Card, Western Union, Cash, PayPal;
Language Spoken: English, Chinese
Product Quality: before-sales, after-sales services;
Recommend Products:
SUNCHIP ARM board Solution list:
RK3588, RK3566, RK3568, RK3399, RK3288, RK3328, RKPX30, RK3188, RK3128 etc.
Display interface: HDMI output, HDMI input, LVDS, EDP, MIPI.
Network optional: WIFI, Bluetooth, Ethernet, 4G, Optical.
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
