Product Details:
|
| CPU: | RK3399 | Interfaces: | USB/HD/RJ45/SIM/TF Slot |
|---|---|---|---|
| RAM: | 4GB | ROM: | 16GB/32GB/64GB Optional |
| Network: | WIFI, BT, LAN | WIFI: | 2.4g+5g |
| BT: | 5.2 | LAN: | 1000M Ethernet |
| High Light: | RK3399 Android Embedded Arm Board,Embedded Arm Board PCBA,Android Development Board PCBA |
||

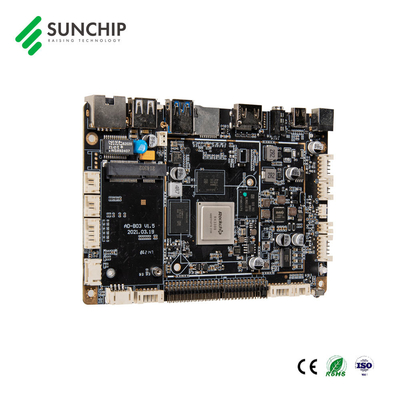

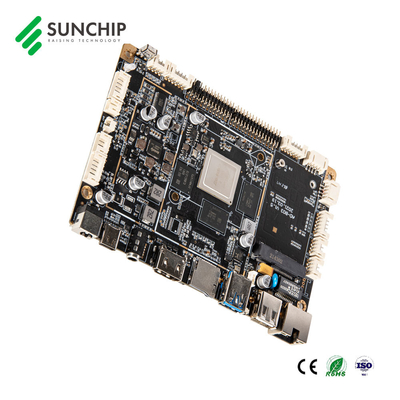

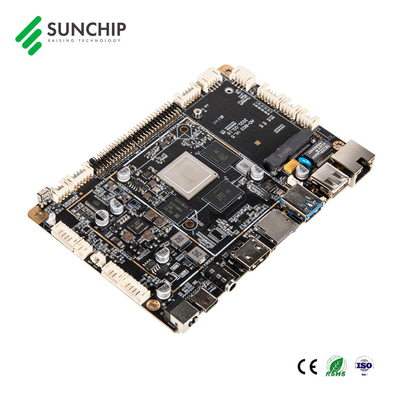

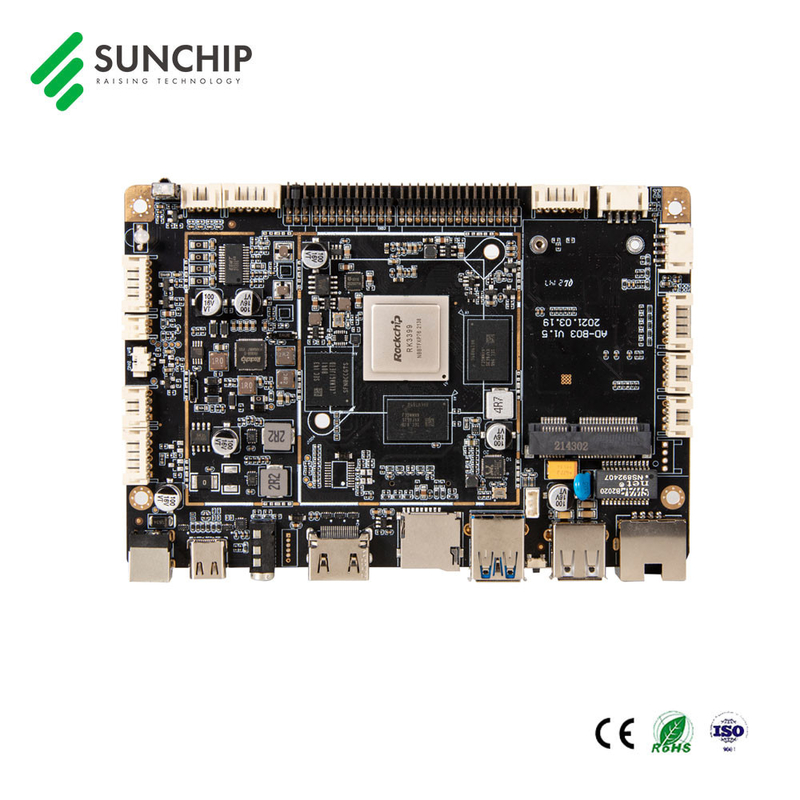

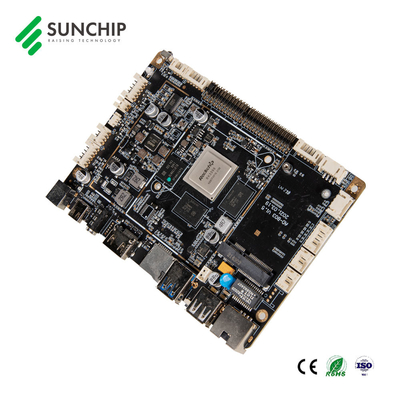

RK3399 RK3288 embedded arm board Android Development PCBA Motherboard lvds edp hd 4G lte WIFI LAN BT
Description:
◆ RK3399’s super high-performance CPU, equipped with Android/Linux system (Android7.1/Android10 is in the process of adaptation), and Antutu runs to 10W+ scores.
◆ 10/100M/1000M self-adaptive Ethernet interface, support Wake-On-Lan(WOL) remote boot.
◆ Support multi-format video decoding, and support LCD displays such as HD (4K/60fps), dual-channel LVDS (1080P), EDP (2K/fps),etc., and support multi-screen co-display and dual-screen with different display modes.
◆ Support 4G data communication, 2.4G WIFI and Bluetooth.
◆ Support timing boot function
◆ Abundant expansion interfaces: 4x USB2.0 interfaces, 1 xUSB3.0 interfaces, 1 IR interface, 2 RS232 interfaces, 3 UART interfaces (TTL level), LVDS,EDP interfaces, TP interface, servo interfaces, 1 dual-channel speaker interface, etc., which can meet the application requirements of a variety of industries.
◆ It perfectly supports a variety of mainstream touch screens such as infrared, capacitance, resistance, and touch film
Introduction of the advantages from Sunchip:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.
| Operating system | Android 7-10 OS version |
| Basic software function | Web browsing, email, e-book, resource manager |
| Sound mode | Clock, alarm clock, calculator, recording |
| Voice support | Multinational voice |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock | |
| Calculator | |
| Note | |
| Weather + clock | |
| Recording | |
| File processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| E-book | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | Calendar |
| Input | Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.) |
| Internet | Browser -Chrome Lite |
| Gmail | |
| System Management | APK installer |
| Original Android system, open root permissions, product customization development | |
| Real-time remote monitoring, 7*24 hours unattended | |
| Support OTA remote upgrade | |
| System setting | |
| Google Maps | |
|
Global time |
| CPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| Deposit | LPDDR4 4G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (Default 16GB) |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display |
| EDP screen interface, support resolution 1920x1080 | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Network | With RJ45 interface, support 10/100/1000 Ethernet |
| Support 4G PCIE interface | |
|
With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 5.0 |
| Image rotation | Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support MIPI camera x2 |
| USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0 | |
| 3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 64GB | |
| Class D amplifier: 5W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V/3A |
