Product Details:
|
| Card Reader: | TF Card Reader | ROM: | 16GB/32GB EMMC |
|---|---|---|---|
| Network: | WiFi 802.11 B/g/n (2.4G/5G Wifi Optional) | Camera: | Support USB Camera And MIPI Camera |
| Power Supply: | DC 12V/2A | RAM: | 2GB/4GB |
| OS: | Android 7-10 Version | Bluetooth: | 5.2 |
| High Light: | High Performance Android Motherboards,Android Motherboards For Digital Signage,Android Motherboards With EDP MIPI |
||

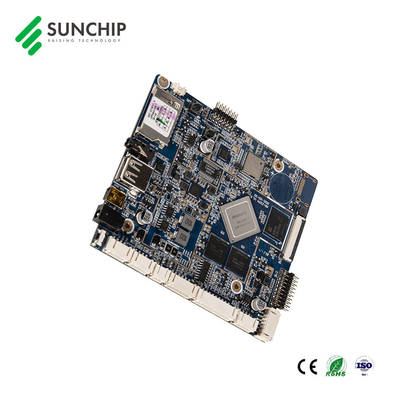

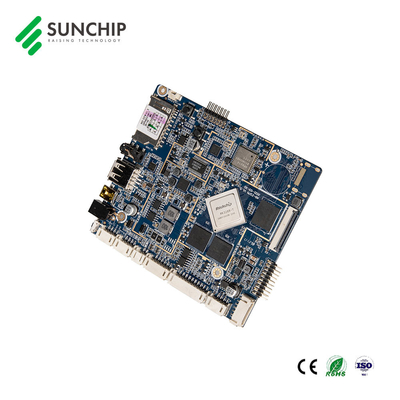

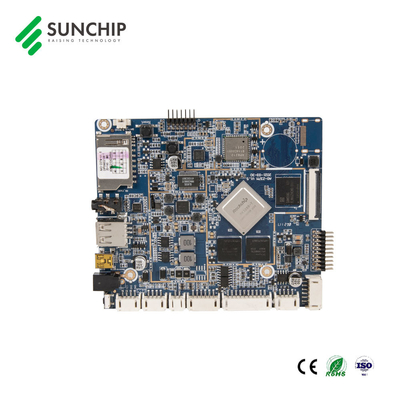

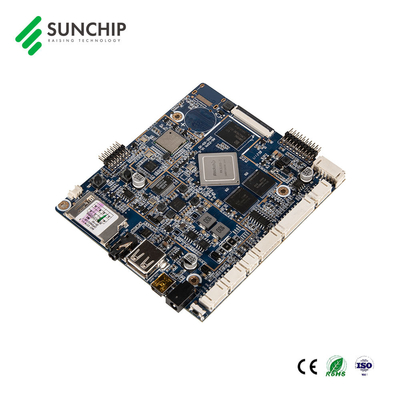

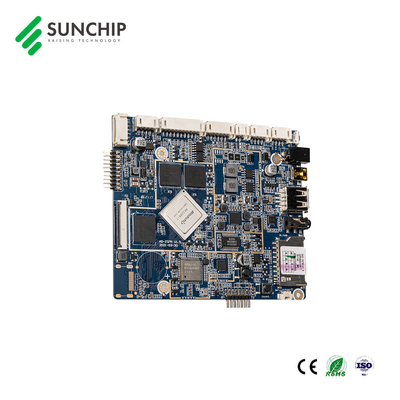

Model: AD-Z37M
The intelligent industrial all-in-one board adopts the Rockchip RK3288 quad-core chip solution and supports Android 8.0 and above systems. Powerful computing power. Support H.265 4K video playback. Rich interface, enhanced power management circuit. It is suitable for intelligent remote network control: equipment such as industrial, medical, large advertising machine, educational video terminal and so on.
RK3288 Board is an industrial control board and android mainboard with advanced technology. It is an industrial motherboard running Android 7-10 version, with dual-core Cortex-A17 and quad-core Mali-T764 GDDR5 GPU. It is equipped with RAM 2GB/4GB and ROM 16GB/32GB EMMC, and its display is optional in LVDS/EDP/MIPI/HD Out. In addition, the power supply is DC 12V/2A, which makes it very efficient and energy saving.
RK3288 Board is widely used in industry and other applications due to its high performance and reliable quality. It has a variety of features that make it ideal for industrial applications, such as its high-speed data transmission, low power consumption, and low cost. It also has excellent heat dissipation and stable operation, which makes it a perfect choice for industrial control boards and android mainboards.
In conclusion, RK3288 Board is an ideal choice for industrial control board and android mainboard, with advanced technology, reliable performance, and energy-efficient power supply. Its various features make it a perfect choice for industrial applications.
| Parameter | Value |
|---|---|
| Power Supply | DC 12V/2A |
| Bluetooth | 5.2 |
| Audio | 3.5mm Audio Jack |
| Camera | Support USB Camera And MIPI Camera |
| Display | LVDS/EDP/MIPI/HD Out Are Optional |
| CPU | Rockchip RK3288 |
| ROM | 16GB/32GB EMMC |
| OS | Android 7-10 Version |
| Network | WiFi 802.11 B/g/n (2.4G/5G Wifi Optional) |
| RAM | 2GB/4GB |
| Product Type | Industrial Control Board, android 10 mainboard, android motherboards |
| CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main frequency | 1.8GHz |
| RAM | LPDDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G Optional |
| Display interface | MIPI Screen interface, Max resolution 1920*1080 |
| EDP screen interface | |
| Touch Panel |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
| The internet | With RJ45 interface, support 10/100 Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | Built-in (optional external) real-time clock power supply battery |
| Interface device | Support MIPI interface camera, up to 500W pixels |
| 3 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial port device modules (3G module, NFC module, printer, card reader, etc.) | |
| SD card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 Output |
| Audio | MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Sunchip and ADW’s RK3288 board is an industrial motherboard designed to elevate the performance of elevators. With a model number AD-B02P, AD-Z37, AD-Z37M, AD-Z33 and AD-Z33M, this board is CE, RoHS, FCC and ISO 9001 certified. It can be purchased in minimum order quantity of 2pcs and the price can be negotiated. The board is delivered within 1-7 days (for samples) and 15-30 days (for MP) and payment terms are 100% T/T for samples and negotiated for MP. The supply ability of the board is 10,000pcs/Month. It comes with TF card reader and Mali-T764 GPU. It has a display of LVDS/EDP/MIPI/HD Out which is optional, as well as WiFi 802.11 B/g/n (2.4G/5G Wifi Optional) and 16GB/32GB EMMC ROM.
The RK3288 board is an ideal choice for elevators as it provides superior performance, high reliability, and extreme flexibility. It is suitable for a wide range of applications including home elevators, commercial elevators, and machine room less elevators. It supports 4K video decoding and provides outstanding graphics performance. It is designed with an ARM Cortex-A17 Quad-Core processor and runs on the Android 7-10 operating system. With its advanced features, the RK3288 board is a great choice for elevators as it ensures smooth and reliable operation.
Sunchip and ADW offer RK3288 Board custom PCB services for mainboards, Custom PCB Board, Elevator PCB Board, and PCB Assembly. Our board is certified with CE, ROHS, FCC, and ISO9001. The minimum order quantity is 2 pcs, and the pricing is negotiable. Packaging is 60pcs per carton. Samples will be sent out within 1-7 days, and the MP lead time is 15-30 days. Payment terms are 100% T/T for samples, and negotiable for MP. Supply ability is 10,000pcs/month. The power supply is DC 12V/2A, and it supports Bluetooth 5.2. The GPU is Mali-T764, and it has a TF card reader. The CPU is Rockchip RK3288.
Q3: After i get the products what if my products broken, what kind of service you support?
A: First contact us, tell us about the problem, our engineer will help to handle; secondly, you can send back the products to us, we will fix it. we support 12 months warranty, any problem catches me online, we can give you good solution way. we want to do long term business with you not just for 1 day 1 time.
Q4. Shipping solution?
We support Express, such as, DHL/FedEx/UPS/TNT etc., also support sea shipping, air shipping and railway shipping, depends on the customer’s request.
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
