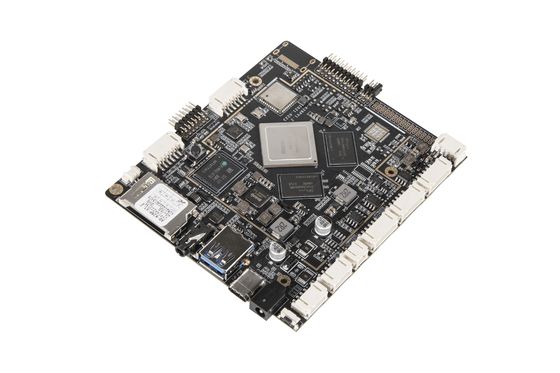

Android 10 Arm Board With 4K UHD Support 4GB RAM 16GB ROM For Digital Signage

Android 10 Arm Board With 4K UHD Support, 4GB RAM, 16GB ROM For Digital Signage

Description:

◆ RK3399’s super high-performance CPU, equipped with Android/Linux system (Android7.1/Android10 is in the process of adaptation), and Antutu runs to 10W+ scores.

◆ 10/100M/1000M self-adaptive Ethernet interface, support Wake-On-Lan(WOL) remote boot.

◆ Support multi-format video decoding, and support LCD displays such as HD (4K/60fps), dual-channel LVDS (1080P), EDP (2K/fps),etc., and support multi-screen co-display and dual-screen with different display modes.

◆ Support 4G data communication, 5gG & 2.4G WIFI and Bluetooth.

◆ Support timing boot function

◆ Abundant expansion interfaces: 4x USB2.0 interfaces, 1 xUSB3.0 interfaces, 1 IR interface, 3 UART interfaces (TTL level), LVDS,EDP ,MIPI interfaces, TP interface, servo interfaces, 1 dual-channel speaker interface, etc., which can meet the application requirements of a variety of industries.

◆ It perfectly supports a variety of mainstream touch screens such as infrared, capacitance, resistance, and touch film

Overview:

The Intelligent industrial all in one board, using Rockchip RK3399 six-core chip program, support Google Android7.1 or higher system. Powerful computing power. Support H.265 4K video playback. Rich interface and enhanced power management circuit. Suitable for intelligent remote network control: industrial, medical, large advertising, educational video terminals and other equipment.

Characteristic:

• It also supports 7-inch to 84-inch LVDS interface displays (point-to-point full HD display 1920*1080) and EDP interface display.

• Multiple interactive mode interfaces: capacitive touch, infrared touch, infrared remote control, USB mouse and keyboard, multi-point optical touch.

• A variety of network interfaces: Ethernet, 4G, WIFI, Bluetooth.

• Multi-channel USB interface, serial output.

• Support 4K video play with HDMI 2.0 HD output.

• Strong anti-electromagnetic interference and electromagnetic compatibility.

Product Specifications

• Hardware specifications

• CPU	Rockchip RK3399 dual-core Cortex-A72+ quad-core Cortex-A53 CPU
  GPU	ARM Mali-T860MP4 GPU
  Run and save	LPDDR4 4G
  Built-in storage capacity	EMMC 8GB/16G/32G/64G optional (label 16GB)
  Display interface	LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
  	EDP screen interface, maximum resolution 4K
  	MIPI screen interface, maximum resolution 1920*1080
  Screen voltage	Support 3.3V/5V/12V optional
  Touch screen	Provide I2C interface (multi-point capacitive touch) Support USB multi-point capacitive touch, multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch
  Network	With RJ45 interface, support 10/100 Ethernet
  	Equipped with Wifi&BT module, supporting Wi-Fi 802.11a/b/g/n/ ac protocol. Support BT4.0
  Image rotation	Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, gravity sensor function (optional)
  Real Time Clock	External real-time clock power supply battery
  Interface device	Support MIPI interface camera
  	6 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals)
  	2 groups of UART, 1 group of SPI or 1 group of UART, 2 groups of SPI. Support external serial devices (NFC module, printer, card reader, etc.)
  	SD card, maximum support 64GB
  	Class D power amplifier: 3W*2 8 ohms, support microphone
  	HDMI 2.0 output
  Audio	MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP Format
  Video	Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback
  Picture	Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation/image enlargement function
  Power Adapter	Input: AC100-240V.50-60HZ, output: DC12V 3A

•  Basic software specifications

• Operating system	Android 7.1/8.0/9.0/ 10.0 Optional
  Basic software functions	Web browsing, email, e-book, resource manager
  Sound effect mode	Clock, alarm clock, calculator, recording
  Voice support	Multinational voice
  Recording	Support MP3, WMA format recording
  Tool	Calendar
  	Alarm Clock
  	Calculator
  	Note
  	Weather + clock
  	Recording
  File processing	EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
  Ebook	PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
  Schedule	Calendar
  Input	Standard Andriod keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
  Network	Browser -ChromeLite
  	Email
  	Gmail
  System Management	APK installer
  	The original ecological Android system, open root permissions, can be customized product development
  	Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended
  	Support OTA remote upgrade
  	System setting
  	Google Maps
  	Global time
