Product Details:
|
| CPU: | Rockchip 3288, 3399, Px30, 3566, 3568 | Ram: | 2GB Or 4GB |
|---|---|---|---|
| Rom: | 16GB/32GB/32GB/64GB Optional | Resolution: | 1920*1080P |
| Material: | Plastic | OS: | Android 7-11 |
| WIFI: | 802.11 B/g/n (or 5G Wifi Optional) | 4G LTE: | Optional |
| High Light: | Sunchip RK3399 Interactive Digital Signage,Interactive Digital Signage Support FHD,RK3399 Advertising Display signage |
||

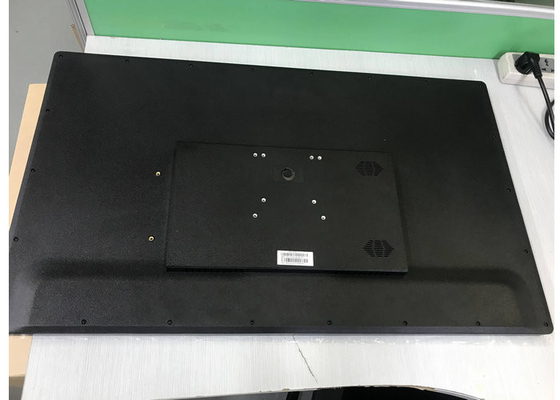

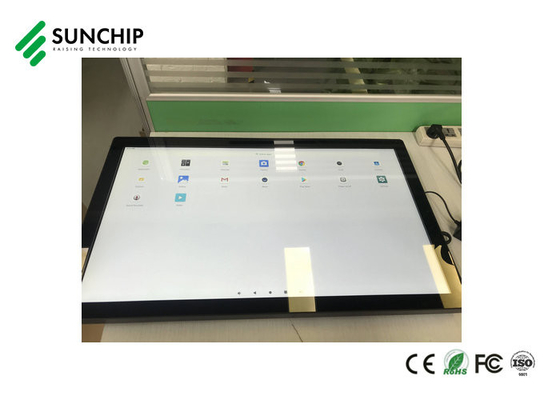

Sunchip Interactive Digital Signage FHD LCD Advertising Display RK3288 RK3399 Wall Mount player box touch lcd display
Model AD-2450
Main Features:
Scheduling playback:Issue many tasks in special time schedule online
Playlist editor:Media contents can be edited by software and make a list.
Multizone display:
Video, photo, text can be display at the same screen.
(freely design template)
Timing function:
Set time power on /off and automatically display and loop, 7days and 24
hours no manual operation.
Storage:Files in internal memory/SD card as local files

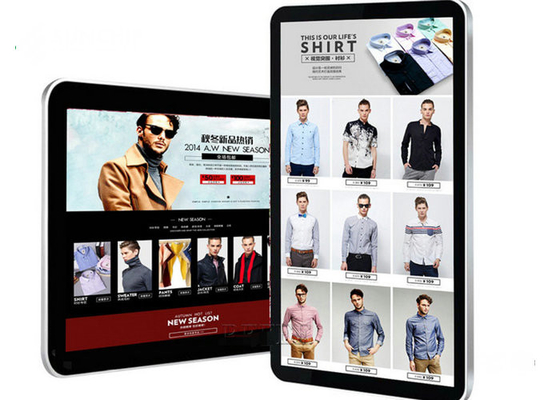

Display mode:Horizontal or vertical output
Remote control:Infrared remote control for terminals
Files update:Files can be transmitted to SD card automatically from server by network.
Network options:LAN OR WiFi connecting for remote control.(3G 4G is optonal)
Network management:
All management of the terminals by our software(or use your own
software APK) go through internet.
Rolling caption:Support rolling caption function ( text bar).
OS:Android system 7-11
Internal Memory:8GB/16GB/32GB, optional
Managing Software:Friendly interface (you can use your own apk)
If use Rockchip RK3288, Android 7-10 OS,
| CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main frequency | 1.8 GHz |
| Deposit | LPDDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G etc. optional |
|
Display interface
|
LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-82" display |
| EDP interface Maximum resolution 4K | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Support I2C touch screen, USB multi-point infrared touch frame, resistance, capacitive touch screen. |
|
The internet
|
With RJ45 interface, support 10/100M Ethernet. |
| Equipped with wifi&BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| With 4G module, support 4G network | |
| Image rotation | Support 0 degree, 90 degree, 180 degree, 270 degree manual/auto rotation, support gravity sensor function (optional) |
| Real Time Clock | External real-time clock power supply battery |
|
Interface device
|
Support MIPI camera |
| Support HDMI output | |
| 5 USB HOST (support usb camera@500W usb printer, U disk, mouse, keyboard and standard usb peripherals) | |
| 3 groups of serial ports (1 group of UART; 2 groups of standard UART or optional RS232). Support external serial devices (NFC module, printer, card reader, etc.) | |
| 3 IO detection ports | |
| TF card | |
| D class large built-in speaker, 5W*2 8R | |
| Support microphone | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A,3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats 2160P@24FPS decoding. YouTube and other online videos, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Image | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V 3A |
If use Rockchip RK3568, Android 11 OS,
| CPU | Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52 |
| Main frequency | Up to 2.0 GHz |
| RAM | DDR4 2G/4G optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (label 16GB) |
|
Display interface
|
LVDS interface (LVDS and MIPI are Only one of them can be selected) |
| MIPI interface (LVDS and MIPI are Only one of them can be selected) | |
| EDP interface | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen |
Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch. |
|
The internet
|
With RJ45 interface, support 10/100/1000M Ethernet. |
| Equipped with WIFI &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0 | |
| Image rotation | Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function |
| Real Time Clock | External real-time clock power supply battery |
|
Interface device
|
Support MIPI interface camera, up to 500W pixels |
| 4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals) | |
| 3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 32GB | |
| Class D power amplifier: 3W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR. |
| Picture | Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
The introduction of touch-enabled displays has created a whole new segment. It’s called interactive digital signage.
Touchscreens mimic a technology most people carry in their pockets… Smartphones. So, it’s only natural that digital signage evolved to deliver content that behaves in a familiar way.
Interactive digital signage offers many advantages:
People who interact with digital signage retain more information than those who have presented a stream of static content. The act of touching the display to make a selection, or a choice engages the viewer like nothing else. It’s the point where the viewer becomes a participant.
Static digital content is somewhat limited by its nature. It does the job for simple advertisements and messages, but interactive digital signage does much more.

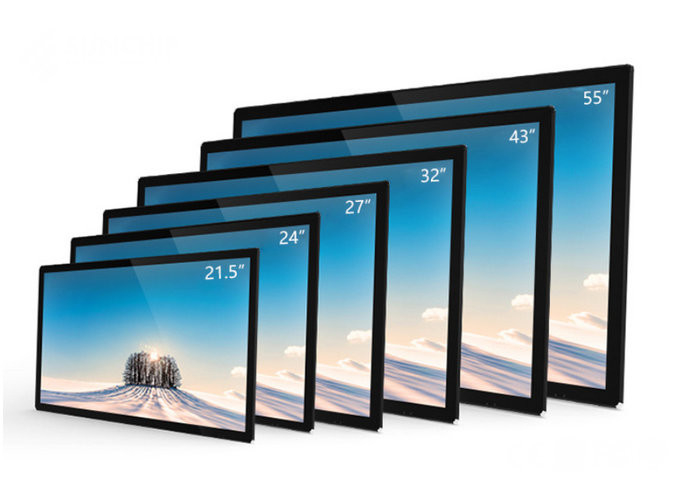

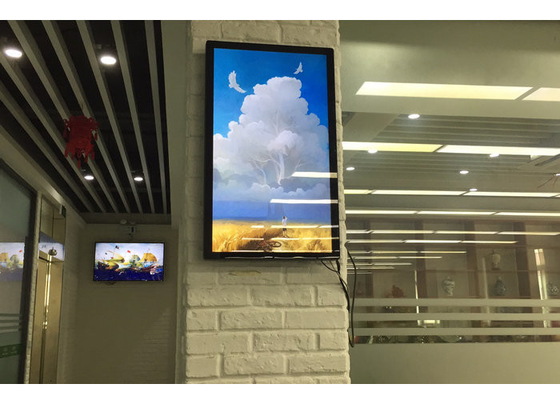

Interactive digital signage displays come in various types, shapes, and sizes. You can find them mounted in freestanding units, either in vertical or horizontal formats. Some interactive display units are installed lower and at an angle, so they are wheelchair accessible. The optimal mounting location is determined by the intended use and target audience. Units designed for temporary deployments, such as trade shows, are usually built for easy transport and enhanced connectivity.
Interactive digital signage remains constantly available and prepared to assist you. It serves as the steadfast companion that fulfills its purpose round the clock, every day of the year. This technology builds upon traditional DIGITAL SIGNAGE PLAYER offering the additional advantage of user interaction. By transforming spectators into participants, INTERACTIVE DIGITAL SIGNAGE creates a superior and more captivating experience.
Introduction of the advantages from Sunchip:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware engineers (layout, debugging) and software engineers (drivers, kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT, testing, shell design, assembly, software customization, QC control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
SUNCHIP: Digital Signage manufacturer in Shenzhen, China.
Our main products include Android ARM Board, Wall Mounted Display, Stretched LCD Display, Open Frame Display and Android Media Player Advertising Box.
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
