Overview:

The large board of the intelligent industrial all-in-one machine adopts the

Rockchip RK3568 quad-core chip solution. Support Android 11 system.

Enhanced power management circuit. Support commonly used external devices.

Rich interfaces and stable performance. Suitable for intelligent remote network

control: equipment such as industrial, medical, large advertising machines,

educational video terminals and other equipment.



Characteristic:

1. Support 7-inch to 84-inch various LVDS interface displays (point-to-point full HD display 1920*1080).

2. Support EDP interface display screen.

3. Support MIPI interface display screen.

4. Multiple network interfaces: Ethernet, wireless Wifi, Bluetooth, 4G.

5. Multiple interactive mode interfaces: capacitive touch, infrared touch,infrared remote control, USB keyboard and mouse, multi-point optical touch.

6. Multi-channel USB interface, serial port.

7. Strong anti-electromagnetic interference and electromagnetic compatibility



Basic hardware specifications:

CPU	Rockchip RK3568 quad-core 64-bit Cortex-A55, GPU Mali-G52
Main frequency	Up to 2.0 GHz
RAM	DDR4 2G/4G optional
Built-in storage capacity	EMMC 8GB/16G/32G/64G optional (label 16GB)
Display interface	LVDS interface (single-channel, 6-bit dual-channel, 8-bit dual-channel). Support maximum resolution 1920x1080, support 7"-84" display
	MIPI interface
	EDP interface
Screen voltage	Support 3.3V/5V/12V optional
Touch screen	Provide I2C interface (can support multi-point resistive touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave touch, multi-point optical touch.
The internet	With RJ45 interface, support 10/100/1000M Ethernet.
	Equipped with WIFI &BT module, supporting Wi-Fi 802.11b/g/n protocol. Support BT4.0
Image rotation	Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto rotation, support gravity sensor function
Real Time Clock	External real-time clock power supply battery
Interface device	Support MIPI interface camera, up to 500W pixels
	4 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk, mouse, keyboard, standard usb peripherals)
	3 groups of serial ports. Support external serial device module (NFC module, printer, card reader, etc.)
	TF card, maximum support 32GB
	Class D power amplifier: 3W*2 8 ohms, support microphone
	HDMI 2.0 output
Audio	MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Video	Support 4K 60fps H.265/H.264/VP9 video decoding. Support 1080P 100fps H.265/H.264 video encoding. Support 8M ISP, support HDR.
Picture	Support JPG, BMP, PNG and other image format browsing and support rotation/slide show/picture zoom function
Power Adapter	Input: AC100-240V.50-60HZ, output: DC12V 3A





Basic software specifications:



Operating system	Android 11 system
Basic software functions	Web browsing, web chat, email, e-book, resource manager
Sound effect mode	Clock, alarm clock, calculator, recording
Language support	Multi-lingual
Recording	Support MP3, WMA format recording
Tool	Calendar
	Alarm Clock
	Calculator
	Note
	Weather + clock
	Recording
Word processing	EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book	PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule	Calendar
Input	Standard Android keyboard, optional third-party input method (Chinese, Korean, Japanese, etc.)
Network	Browser -Chrome Lite
	GOOGLE Market
	Email
	Gmail
	Google talk
System Management	Support OTA remote upgrade, U disk upgrade, SD upgrade (silent installation)
	Original ecological Android system, open root permission, can carry out product customization development
	Customizable local or remote server management system
	Support a variety of third-party Android remote advertising systems
	Support multiple serial devices, USB devices
	Support dual-screen different display

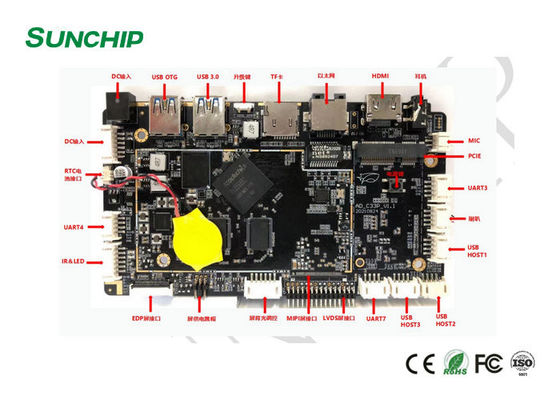

Android board pictures:











Rockchip RK3568 Solution: ANDROID 11 OS,

2GB RAM/16GB ROM, Only Main board (no Sub small board).

Quad-Core, LVDS/EDP/MIPI/HDMI OUT for display, 3*Serial Port (UART3, UART4, UART7),

2.4G WIFI & Bluetooth 4.0, 10/100/1000M Ethernet,1*USB 3.0,1*USB OTG, 3*4PIN USB, 12V/3A.

Support rotation by manually or automatically; RTC; Support touch;
