UART RS232 Android Tablet Pc Small TFT LCD Screen Digital Display Wide Viewing Angle

UART RS232 Android Tablet Pc Small TFT LCD Screen Digital Display Wide Viewing Angle
UART RS232 Android Tablet Pc Small TFT LCD Screen Digital Display Wide Viewing Angle UART RS232 Android Tablet Pc Small TFT LCD Screen Digital Display Wide Viewing Angle

Large Image :  UART RS232 Android Tablet Pc Small TFT LCD Screen Digital Display Wide Viewing Angle

Product Details:
Place of Origin: China
Brand Name: ADW
Model Number: P1040
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD90~USD150/pc
Packaging Details: carton or gift box
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10000pcs per month

UART RS232 Android Tablet Pc Small TFT LCD Screen Digital Display Wide Viewing Angle

Description
Product Name: 10 Inch Open Frame UART RS232 Small TFT LCD Screen Digital Display Viewing Angle: L89 R89 U89 D8
Touch Screen: Option Split Screen Display: Support
Network Function:: Wired LAN,WIFI,3G 4G Size: 10.1", 13.3", 15.6",18.5",21.5",32"
High Light:

notebook tablet pc

,

elevator signage display

10 inch open frame UART RS232 small TFT LCD screen digital display



Open frame for OEM/ODM design

easily installed into customized display window.



advertising / signage features

split screen display (video + pictures + music ...)
real time display
rolling captions
calendar
Weather

Network System (WIFI, 3G/4G, RJ45)


* Can set several assistant of administrator with limits of authority.
* Can set fixed time download, real-time download. And keep broadcasting when downloading.
* Support terminal set password, for protect viciously control from outside.
* Support modify terminal IP by server software or by remote control.
* High definition, and support 1080P video.
* Control one or all terminals.
* Support 3 roll-text.
* Support play files & roll-text in the specified time, support playlist.
* Support play video with connected photo and roll-text.
* Can be set several clocks of power on and off.
* Support cut-in broadcasting.
* Support vertical type.



Product specs

Display Panel Details
display panel brand
LG,Samsung,AUO,Chimei,etc... original brand new & grade A+
Size
7 inch to 85 inch
Decoding Details
video format
JPG.PNG.BMP.AVI.MPG.MP4.WMV.MOV.MP3.WAV.TXT.GZ.IMG.PDF..
HD 1080P
support
picture format
JPG,PNG,BMP, etc...
text
txt...
audio format
MP3, WAV...
General Specifications
Program Update
support CMS

Playlist
support

break-point memory
support

built-in speaker
2 x 2W, 2 X 5W , 2 X 10W as options

scrolling caption
support

calendar
support

inter-cut
support,fixed time inter-cut

Anti-theft lock
support

split screen display
Can be set split-screen 1to8 area for broadcasting video w/ photo, w/ other display of logo/ date/ weather/ roll-text or subtitles.
Optional Functions: Open frame ,Touch screen, Motion sensor, wifi/3G 4G/RJ45 network function, Android/Windows OS etc......
The machine operating temperature: -10~50°C,Storage Temperature:-20~60°C.
Advertising Features:
1.Application fields: Can be widely used in hotels, office buildings, the elevator, the exhibition site, entertainment and leisure facilities, but also in the subway station, train stations, airports, shopping malls, supermarkets, chain stores, specialty stores, convenience stores, promotional counters and other occasions etc......
2.Outer shell is made of extra good quality of metal material, which is painted by powder-spray craft work.
3.Support shockproof and dust proof function.
4.Adopts high transparent tempered glass as protection layer toprevent lcd/led panel being broken or distorted.
5.Locking system for anti-thieves, prevented the storage devices ( SD/CF cards ) and whole machine from being stolen.
6.Support IR Remote controller, user can use remote controller to operate the whole lcd. ( key buttons is optional )
7.switch on automatically loop playback, support files in mixed,pictures,video,music.
8.support MPEG4(avi: div-x,x-vid),MPEG2(dvd,vob,MPG2),MPEG1(vcd,dat,MPG1),JPEG,MP3 format etc...
9. support OTG copy function,USB file automatically COPY to memory card.
10.automatic power-on/off, rolling caption, time display, playlists, vertica/horizontal screen, time and volume functions etc...
11. Image playback: rotate, slide show, background music etc...
12.Support 5 groups of auto power-on/off timer, able to set those 5 groups of time 1 day and 7 days in 1week.
13.Automatically generate play logs, file playback status query
14. support the specified file playing in a specific time spot (option)



Product Description


System CPU RK3288 Quad Core Cortex-A17@1.8G GPU Mali T764
RAM 2GB/4GB (optional)
EMMC 8GB/16GB/32GB(optional)
OS Android 6.0 (Linux OS optional)
Display LCD TFT display size 10.1"
resolution 1280*800
Contrast 800:1
Brightness 300cd/m2
screen ratio 16:10
Network WiFi WiFi 802.11b/g/n (2.4G/5G optional)
Mobile network       Support full Netcom 4G (optional)
Bluetooth Bluetooth 4.0
Ethernet 10M/100M/1000M Ethernet
Interface USB Interface support USB host*2
Yype_c USB USB_Debug Interface*1
DC DC power supply 12V input
SD card slot supports up to 32GB
HD supports HD output
Built-in speaker 8Ω 2W*2
Power connector       6PIN pitch 2.0 built-in power board interface *1 (optional)
GPIO port 4PIN pitch 2.0 GPIO external expansion port *1 (optional)
RS232 interface       4PIN pitch 2.0 RS232 or UART external expansion port *1 (optional)
UART interface 4PIN pitch 2.0 UART external expansion port *1 (optional)
MIC interface 2PIN pitch 2.0 MIC external expansion port *1 (optional)
Infrared remote control Support built-in infrared remote control (optional)
Infrared remote control and LED light support 6PIN pitch 2.0 external expansion port (optional)
USB expansion port 4PIN pitch 2.0 supports USB host external expansion port *3 (optional)
RJ45 Ethernet port
Headphones 3.5mm stereo headphone output
Button button volume +, volume -, power on/off
Media playback Video format Supports 2160P@24FPS decoding of H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 1080P, HTML5 video playback, Flash 10.1 playback
Audio format MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format
Text EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
E-book PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
Image format JPG,BMP,PNG
System Management APK Install APK Installer
Root Permissions Original Android system, open root permissions, can be customized for product development
Remote control Real-time remote monitoring, system crash self-recovery, 7*24 hours unattended
OTA upgrade Support OTA remote upgrade
Other dual screen display support Dual screen display different content function (optional)
VESA hole       supports 75*75mm VESA hole
Gravity sensing Support 0 degree, 90 degree, 180 degree, 270 degree manual / automatic rotation
Accessories adapter power adapter 12V/2A
Instruction manual Standard

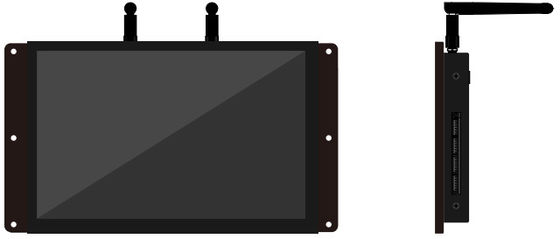

Product image
UART RS232 Android Tablet Pc Small TFT LCD Screen Digital Display Wide Viewing Angle 0
UART RS232 Android Tablet Pc Small TFT LCD Screen Digital Display Wide Viewing Angle 1UART RS232 Android Tablet Pc Small TFT LCD Screen Digital Display Wide Viewing Angle 2

Applications
UART RS232 Android Tablet Pc Small TFT LCD Screen Digital Display Wide Viewing Angle 3
